PDF Publication Title:
Text from PDF Page: 022

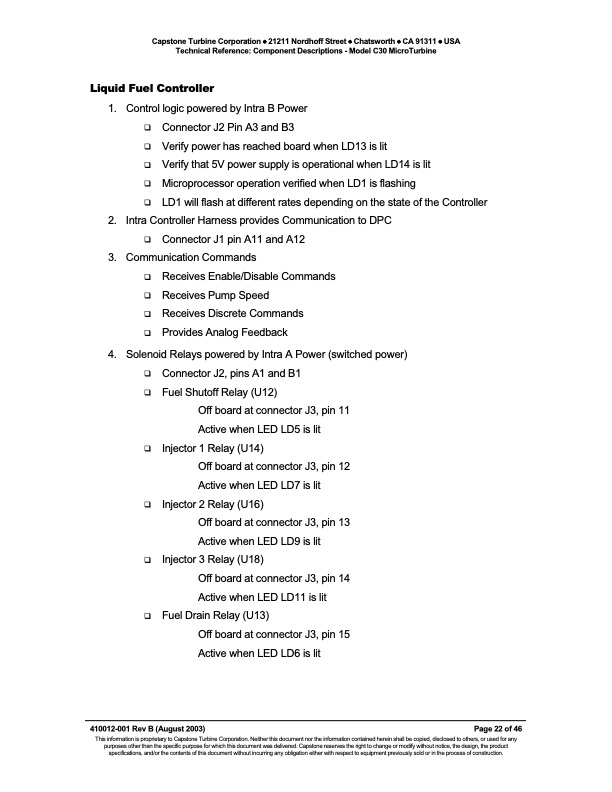

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Component Descriptions - Model C30 MicroTurbine Liquid Fuel Controller 1. Control logic powered by Intra B Power ConnectorJ2PinA3andB3 VerifypowerhasreachedboardwhenLD13islit Verifythat5VpowersupplyisoperationalwhenLD14islit MicroprocessoroperationverifiedwhenLD1isflashing LD1willflashatdifferentratesdependingonthestateoftheController 2. Intra Controller Harness provides Communication to DPC ConnectorJ1pinA11andA12 3. Communication Commands ReceivesEnable/DisableCommands ReceivesPumpSpeed ReceivesDiscreteCommands ProvidesAnalogFeedback 4. Solenoid Relays powered by Intra A Power (switched power) ConnectorJ2,pinsA1andB1 FuelShutoffRelay(U12) Off board at connector J3, pin 11 Active when LED LD5 is lit Injector1Relay(U14) Off board at connector J3, pin 12 Active when LED LD7 is lit Injector2Relay(U16) Off board at connector J3, pin 13 Active when LED LD9 is lit Injector3Relay(U18) Off board at connector J3, pin 14 Active when LED LD11 is lit FuelDrainRelay(U13) Off board at connector J3, pin 15 Active when LED LD6 is lit 410012-001 Rev B (August 2003) Page 22 of 46 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Component Descriptions Capstone Model C30 MicroTurbine
PDF Search Title:
Technical Reference Component Descriptions Capstone Model C30 MicroTurbineOriginal File Name Searched:
410012_C30_Component_Descriptions.pdfDIY PDF Search: Google It | Yahoo | Bing
