Text from PDF Page: 020

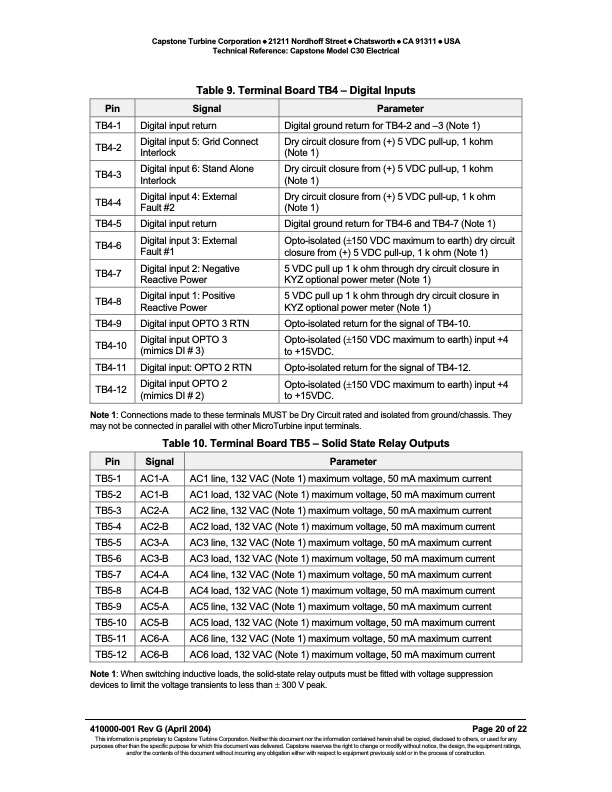

TB4-2 TB4-3 Digital input 5: Grid Connect Interlock Digital input 6: Stand Alone Interlock Digital input 4: External Fault #2 Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Capstone Model C30 Electrical Table 9. Terminal Board TB4 – Digital Inputs Pin Signal Parameter TB4-1 Digital input return Digital ground return for TB4-2 and –3 (Note 1) Dry circuit closure from (+) 5 VDC pull-up, 1 kohm (Note 1) Dry circuit closure from (+) 5 VDC pull-up, 1 kohm (Note 1) Dry circuit closure from (+) 5 VDC pull-up, 1 k ohm (Note 1) Digital ground return for TB4-6 and TB4-7 (Note 1) Opto-isolated (±150 VDC maximum to earth) dry circuit closure from (+) 5 VDC pull-up, 1 k ohm (Note 1) 5 VDC pull up 1 k ohm through dry circuit closure in KYZ optional power meter (Note 1) 5 VDC pull up 1 k ohm through dry circuit closure in KYZ optional power meter (Note 1) Opto-isolated return for the signal of TB4-10. Opto-isolated (±150 VDC maximum to earth) input +4 to +15VDC. Opto-isolated return for the signal of TB4-12. Opto-isolated (±150 VDC maximum to earth) input +4 to +15VDC. TB4-4 TB4-5 Digital input return TB4-6 TB4-7 Digital input 3: External Fault #1 Digital input 2: Negative Reactive Power Digital input 1: Positive Reactive Power TB4-8 TB4-9 Digital input OPTO 3 RTN Digital input OPTO 3 (mimics DI # 3) TB4-10 TB4-11 Digital input: OPTO 2 RTN TB4-12 Digital input OPTO 2 (mimics DI # 2) Note 1: Connections made to these terminals MUST be Dry Circuit rated and isolated from ground/chassis. They may not be connected in parallel with other MicroTurbine input terminals. Table 10. Terminal Board TB5 – Solid State Relay Outputs Pin Signal Parameter TB5-1 AC1-A TB5-2 AC1-B TB5-3 AC2-A TB5-4 AC2-B TB5-5 AC3-A TB5-6 AC3-B TB5-7 AC4-A TB5-8 AC4-B TB5-9 AC5-A TB5-10 AC5-B TB5-11 AC6-A TB5-12 AC6-B AC1 line, 132 VAC (Note 1) maximum voltage, 50 mA maximum current AC1 load, 132 VAC (Note 1) maximum voltage, 50 mA maximum current AC2 line, 132 VAC (Note 1) maximum voltage, 50 mA maximum current AC2 load, 132 VAC (Note 1) maximum voltage, 50 mA maximum current AC3 line, 132 VAC (Note 1) maximum voltage, 50 mA maximum current AC3 load, 132 VAC (Note 1) maximum voltage, 50 mA maximum current AC4 line, 132 VAC (Note 1) maximum voltage, 50 mA maximum current AC4 load, 132 VAC (Note 1) maximum voltage, 50 mA maximum current AC5 line, 132 VAC (Note 1) maximum voltage, 50 mA maximum current AC5 load, 132 VAC (Note 1) maximum voltage, 50 mA maximum current AC6 line, 132 VAC (Note 1) maximum voltage, 50 mA maximum current AC6 load, 132 VAC (Note 1) maximum voltage, 50 mA maximum current Note 1: When switching inductive loads, the solid-state relay outputs must be fitted with voltage suppression devices to limit the voltage transients to less than ± 300 V peak. 410000-001 Rev G (April 2004) Page 20 of 22 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment ratings, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | TECH REF 30 ELEC
