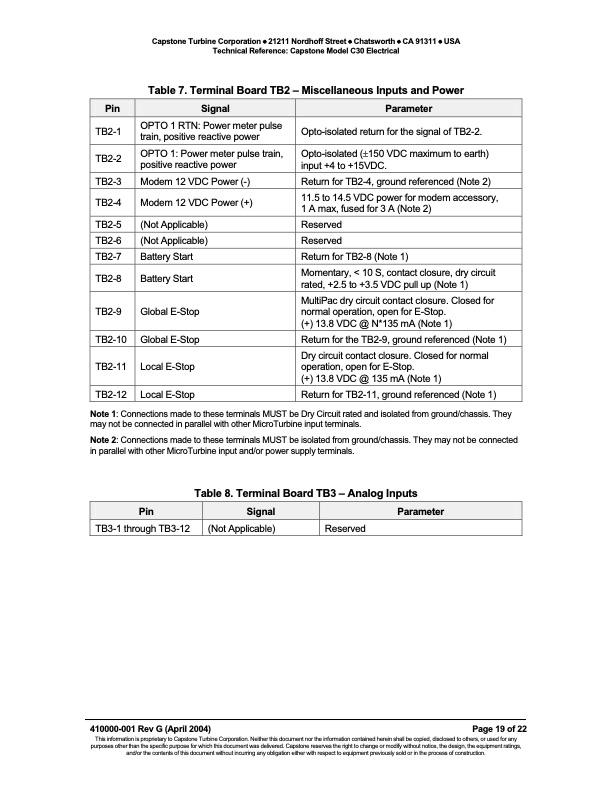

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Capstone Model C30 Electrical Table 7. Terminal Board TB2 – Miscellaneous Inputs and Power Pin Signal Parameter TB2-1 OPTO 1 RTN: Power meter pulse train, positive reactive power meter pulse train, power Power (-) Power (+) Opto-isolated return for the signal of TB2-2. Opto-isolated (±150 VDC maximum to earth) input +4 to +15VDC. Return for TB2-4, ground referenced (Note 2) 11.5 to 14.5 VDC power for modem accessory, 1Amax,fusedfor3A(Note2) Reserved Reserved Return for TB2-8 (Note 1) Momentary, < 10 S, contact closure, dry circuit rated, +2.5 to +3.5 VDC pull up (Note 1) MultiPac dry circuit contact closure. Closed for normal operation, open for E-Stop. (+) 13.8 VDC @ N*135 mA (Note 1) Return for the TB2-9, ground referenced (Note 1) Dry circuit contact closure. Closed for normal operation, open for E-Stop. (+) 13.8 VDC @ 135 mA (Note 1) Return for TB2-11, ground referenced (Note 1) OPTO 1: Power positive reactive TB2-2 TB2-3 Modem 12 VDC TB2-4 Modem 12 VDC TB2-5 (Not Applicable) TB2-6 (Not Applicable) TB2-7 Battery Start TB2-8 Battery Start TB2-9 Global E-Stop TB2-10 Global E-Stop TB2-11 Local E-Stop TB2-12 Local E-Stop Note 1: Connections made to these terminals MUST be Dry Circuit rated and isolated from ground/chassis. They may not be connected in parallel with other MicroTurbine input terminals. Note 2: Connections made to these terminals MUST be isolated from ground/chassis. They may not be connected in parallel with other MicroTurbine input and/or power supply terminals. Table 8. Terminal Board TB3 – Analog Inputs TB3-1 through TB3-12 (Not Applicable) Reserved Pin Signal Parameter 410000-001 Rev G (April 2004) Page 19 of 22 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment ratings, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | TECH REF 30 ELEC
