PDF Publication Title:
Text from PDF Page: 027

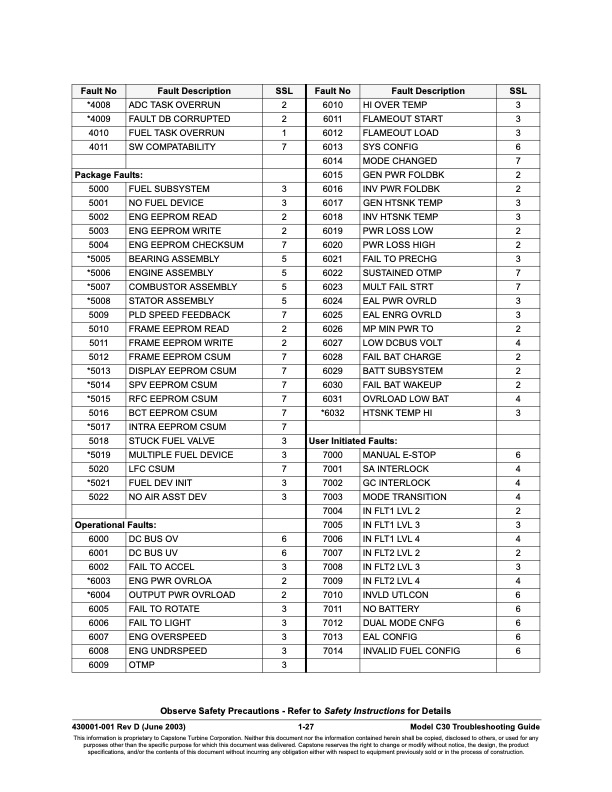

Fault No Fault Description SSL Fault No Fault Description SSL *4008 ADC TASK OVERRUN 2 6010 HI OVER TEMP 3 *4009 FAULT DB CORRUPTED 2 6011 FLAMEOUT START 3 4010 FUEL TASK OVERRUN 1 6012 FLAMEOUT LOAD 3 4011 SW COMPATABILITY 7 6013 SYS CONFIG 6 6014 MODE CHANGED 7 Package Faults: 6015 GEN PWR FOLDBK 2 5000 FUEL SUBSYSTEM 3 6016 INV PWR FOLDBK 2 5001 NO FUEL DEVICE 3 6017 GEN HTSNK TEMP 3 5002 ENG EEPROM READ 2 6018 INV HTSNK TEMP 3 5003 ENG EEPROM WRITE 2 6019 PWR LOSS LOW 2 5004 ENG EEPROM CHECKSUM 7 6020 PWR LOSS HIGH 2 *5005 BEARING ASSEMBLY 5 6021 FAIL TO PRECHG 3 *5006 ENGINE ASSEMBLY 5 6022 SUSTAINED OTMP 7 *5007 COMBUSTOR ASSEMBLY 5 6023 MULT FAIL STRT 7 *5008 STATOR ASSEMBLY 5 6024 EAL PWR OVRLD 3 5009 PLD SPEED FEEDBACK 7 6025 EAL ENRG OVRLD 3 5010 FRAME EEPROM READ 2 6026 MP MIN PWR TO 2 5011 FRAME EEPROM WRITE 2 6027 LOW DCBUS VOLT 4 5012 FRAME EEPROM CSUM 7 6028 FAIL BAT CHARGE 2 *5013 DISPLAY EEPROM CSUM 7 6029 BATT SUBSYSTEM 2 *5014 SPV EEPROM CSUM 7 6030 FAIL BAT WAKEUP 2 *5015 RFC EEPROM CSUM 7 6031 OVRLOAD LOW BAT 4 5016 BCT EEPROM CSUM 7 *6032 HTSNK TEMP HI 3 *5017 INTRA EEPROM CSUM 7 5018 STUCK FUEL VALVE 3 User Initiated Faults: *5019 MULTIPLE FUEL DEVICE 3 7000 MANUAL E-STOP 6 5020 LFC CSUM 7 7001 SA INTERLOCK 4 *5021 FUEL DEV INIT 3 7002 GC INTERLOCK 4 5022 NO AIR ASST DEV 3 7003 MODE TRANSITION 4 7004 IN FLT1 LVL 2 2 Operational Faults: 7005 IN FLT1 LVL 3 3 6000 DC BUS OV 6 7006 IN FLT1 LVL 4 4 6001 DC BUS UV 6 7007 IN FLT2 LVL 2 2 6002 FAIL TO ACCEL 3 7008 IN FLT2 LVL 3 3 *6003 ENG PWR OVRLOA 2 7009 IN FLT2 LVL 4 4 *6004 OUTPUT PWR OVRLOAD 2 7010 INVLD UTLCON 6 6005 FAIL TO ROTATE 3 7011 NO BATTERY 6 6006 FAIL TO LIGHT 3 7012 DUAL MODE CNFG 6 6007 ENG OVERSPEED 3 7013 EAL CONFIG 6 6008 ENG UNDRSPEED 3 7014 INVALID FUEL CONFIG 6 6009 OTMP 3 Observe Safety Precautions - Refer to Safety Instructions for Details 430001-001 Rev D (June 2003) 1-27 Model C30 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Capstone Table of Contents ALL Series Fault Codes
PDF Search Title:
Capstone Table of Contents ALL Series Fault CodesOriginal File Name Searched:
C30FaultCodes.pdfDIY PDF Search: Google It | Yahoo | Bing
