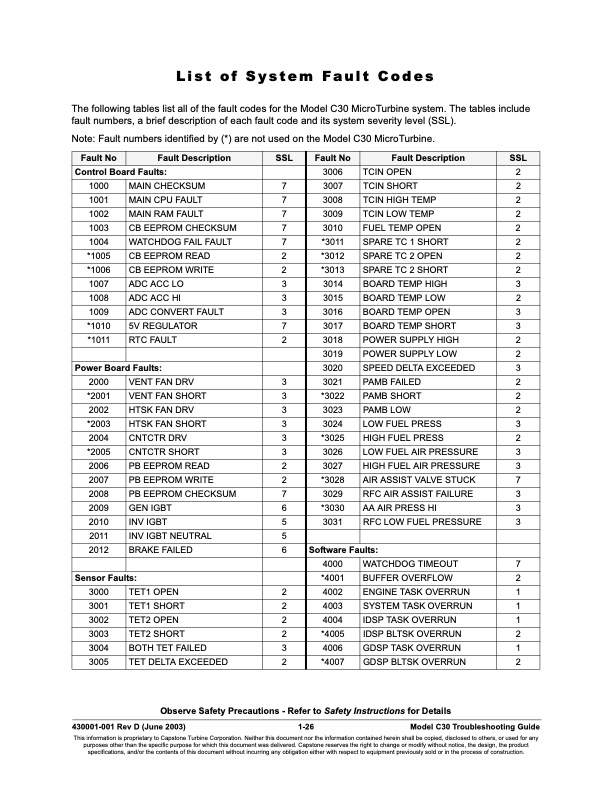

List of System Fault Codes The following tables list all of the fault codes for the Model C30 MicroTurbine system. The tables include fault numbers, a brief description of each fault code and its system severity level (SSL). Note: Fault numbers identified by (*) are not used on the Model C30 MicroTurbine. Fault No Fault Description SSL Fault No Fault Description SSL Control Board Faults: 3006 TCIN OPEN 2 1000 MAIN CHECKSUM 7 3007 TCIN SHORT 2 1001 MAIN CPU FAULT 7 3008 TCIN HIGH TEMP 2 1002 MAIN RAM FAULT 7 3009 TCIN LOW TEMP 2 1003 CB EEPROM CHECKSUM 7 3010 FUEL TEMP OPEN 2 1004 WATCHDOG FAIL FAULT 7 *3011 SPARE TC 1 SHORT 2 *1005 CB EEPROM READ 2 *3012 SPARE TC 2 OPEN 2 *1006 CB EEPROM WRITE 2 *3013 SPARE TC 2 SHORT 2 1007 ADC ACC LO 3 3014 BOARD TEMP HIGH 3 1008 ADC ACC HI 3 3015 BOARD TEMP LOW 2 1009 ADC CONVERT FAULT 3 3016 BOARD TEMP OPEN 3 *1010 5V REGULATOR 7 3017 BOARD TEMP SHORT 3 *1011 RTC FAULT 2 3018 POWER SUPPLY HIGH 2 3019 POWER SUPPLY LOW 2 Power Board Faults: 3020 SPEED DELTA EXCEEDED 3 2000 VENT FAN DRV 3 3021 PAMB FAILED 2 *2001 VENT FAN SHORT 3 *3022 PAMB SHORT 2 2002 HTSK FAN DRV 3 3023 PAMB LOW 2 *2003 HTSK FAN SHORT 3 3024 LOW FUEL PRESS 3 2004 CNTCTR DRV 3 *3025 HIGH FUEL PRESS 2 *2005 CNTCTR SHORT 3 3026 LOW FUEL AIR PRESSURE 3 2006 PB EEPROM READ 2 3027 HIGH FUEL AIR PRESSURE 3 2007 PB EEPROM WRITE 2 *3028 AIR ASSIST VALVE STUCK 7 2008 PB EEPROM CHECKSUM 7 3029 RFC AIR ASSIST FAILURE 3 2009 GEN IGBT 6 *3030 AA AIR PRESS HI 3 2010 INV IGBT 5 3031 RFC LOW FUEL PRESSURE 3 2011 INV IGBT NEUTRAL 5 2012 BRAKE FAILED 6 Software Faults: 4000 WATCHDOG TIMEOUT 7 Sensor Faults: *4001 BUFFER OVERFLOW 2 3000 TET1 OPEN 2 4002 ENGINE TASK OVERRUN 1 3001 TET1 SHORT 2 4003 SYSTEM TASK OVERRUN 1 3002 TET2 OPEN 2 4004 IDSP TASK OVERRUN 1 3003 TET2 SHORT 2 *4005 IDSP BLTSK OVERRUN 2 3004 BOTH TET FAILED 3 4006 GDSP TASK OVERRUN 1 3005 TET DELTA EXCEEDED 2 *4007 GDSP BLTSK OVERRUN 2 Observe Safety Precautions - Refer to Safety Instructions for Details 430001-001 Rev D (June 2003) 1-26 Model C30 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Capstone Table of Contents ALL Series Fault Codes
