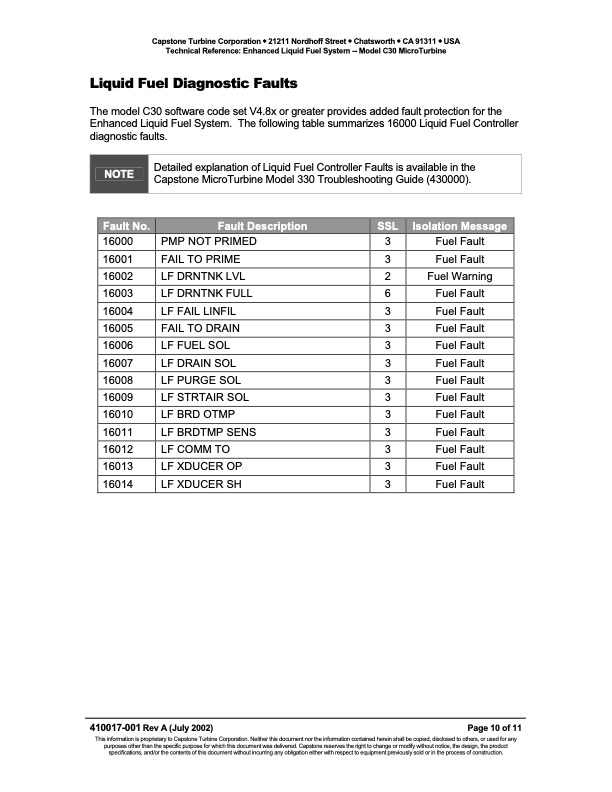

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Enhanced Liquid Fuel System -- Model C30 MicroTurbine Liquid Fuel Diagnostic Faults The model C30 software code set V4.8x or greater provides added fault protection for the Enhanced Liquid Fuel System. The following table summarizes 16000 Liquid Fuel Controller diagnostic faults. Detailed explanation of Liquid Fuel Controller Faults is available in the Capstone MicroTurbine Model 330 Troubleshooting Guide (430000). NOTE Fault No. Fault Description SSL Isolation Message 16000 PMP NOT PRIMED 16001 FAIL TO PRIME 16002 LF DRNTNK LVL 16003 LF DRNTNK FULL 16004 LF FAIL LINFIL 16005 FAIL TO DRAIN 16006 LF FUEL SOL 16007 LF DRAIN SOL 16008 LF PURGE SOL 16009 LF STRTAIR SOL 16010 LF BRD OTMP 16011 LF BRDTMP SENS 16012 LF COMM TO 16013 LF XDUCER OP 16014 LF XDUCER SH 3 3 2 6 3 3 3 3 3 3 3 3 3 3 3 Fuel Fault Fuel Fault Fuel Warning Fuel Fault Fuel Fault Fuel Fault Fuel Fault Fuel Fault Fuel Fault Fuel Fault Fuel Fault Fuel Fault Fuel Fault Fuel Fault Fuel Fault 410017-001 Rev A (July 2002) Page 10 of 11 shall be copied, disclosed to others, or used for any This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | 410017-Enhanced-Liquid-Fuel-System
