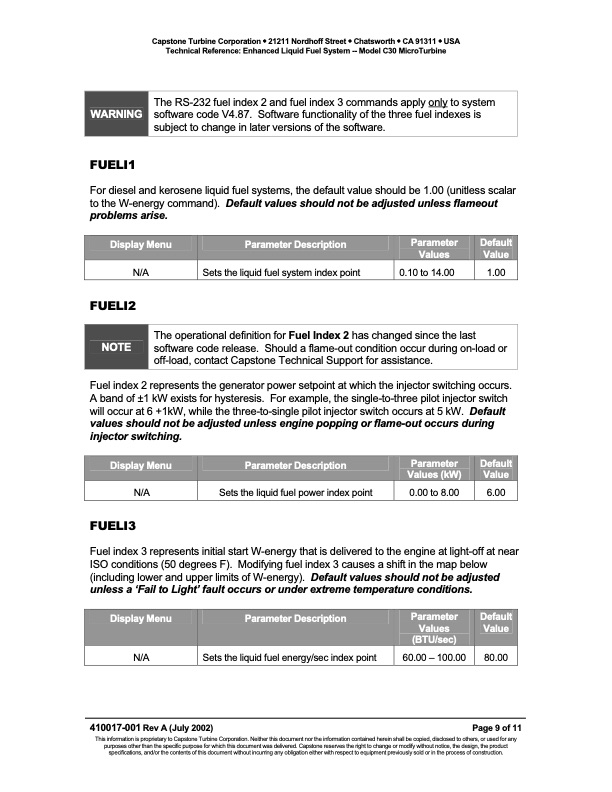

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Enhanced Liquid Fuel System -- Model C30 MicroTurbine FUELI1 For diesel and kerosene liquid fuel systems, the default value should be 1.00 (unitless scalar to the W-energy command). Default values should not be adjusted unless flameout problems arise. N/A Sets the liquid fuel system index point 0.10 to 14.00 1.00 FUELI2 Fuel index 2 represents the generator power setpoint at which the injector switching occurs. A band of ±1 kW exists for hysteresis. For example, the single-to-three pilot injector switch will occur at 6 +1kW, while the three-to-single pilot injector switch occurs at 5 kW. Default values should not be adjusted unless engine popping or flame-out occurs during injector switching. N/A Sets the liquid fuel power index point 0.00 to 8.00 6.00 FUELI3 Fuel index 3 represents initial start W-energy that is delivered to the engine at light-off at near ISO conditions (50 degrees F). Modifying fuel index 3 causes a shift in the map below (including lower and upper limits of W-energy). Default values should not be adjusted unless a ëFail to Lightí fault occurs or under extreme temperature conditions. N/A Sets the liquid fuel energy/sec index point 60.00 ñ 100.00 80.00 410017-001 Rev A (July 2002) Page 9 of 11 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. WARNING The RS-232 fuel index 2 and fuel index 3 commands apply only to system software code V4.87. Software functionality of the three fuel indexes is subject to change in later versions of the software. Display Menu Parameter Description Parameter Values Default Value NOTE The operational definition for Fuel Index 2 has changed since the last software code release. Should a flame-out condition occur during on-load or off-load, contact Capstone Technical Support for assistance. Display Menu Parameter Description Parameter Values (kW) Default Value Display Menu Parameter Description Parameter Values (BTU/sec) Default ValuePDF Image | 410017-Enhanced-Liquid-Fuel-System
