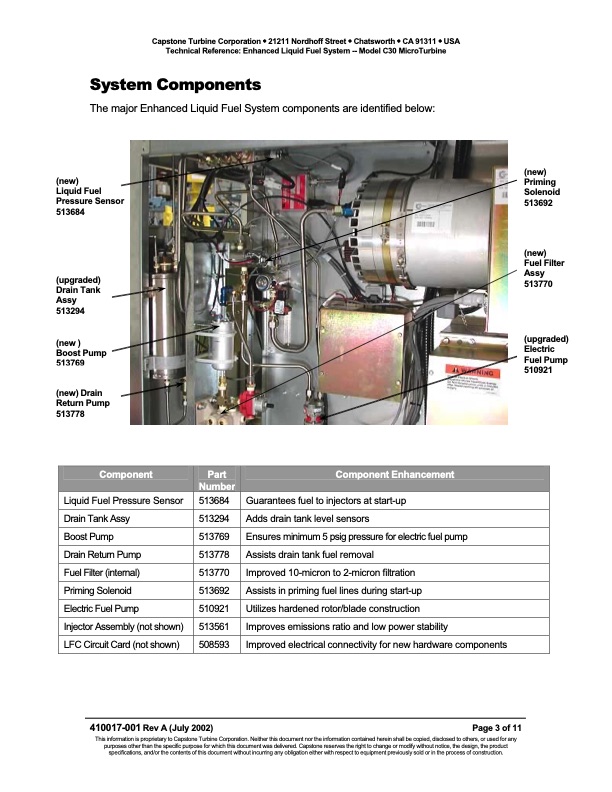

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Enhanced Liquid Fuel System -- Model C30 MicroTurbine System Components The major Enhanced Liquid Fuel System components are identified below: (new) Liquid Fuel Pressure Sensor 513684 (upgraded) Drain Tank Assy 513294 (new ) Boost Pump 513769 (new) Drain Return Pump 513778 Liquid Fuel Pressure Sensor Drain Tank Assy Boost Pump Drain Return Pump Fuel Filter (internal) Priming Solenoid Electric Fuel Pump Injector Assembly (not shown) LFC Circuit Card (not shown) (new) Priming Solenoid 513692 (new) Fuel Filter Assy 513770 (upgraded) Electric Fuel Pump 510921 Component Part Number Component Enhancement 513684 513294 513769 513778 513770 513692 510921 513561 508593 Guarantees fuel to injectors at start-up Adds drain tank level sensors Ensures minimum 5 psig pressure for electric fuel pump Assists drain tank fuel removal Improved 10-micron to 2-micron filtration Assists in priming fuel lines during start-up Utilizes hardened rotor/blade construction Improves emissions ratio and low power stability Improved electrical connectivity for new hardware components Page 3 of 11 410017-001 Rev A (July 2002) This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | 410017-Enhanced-Liquid-Fuel-System
