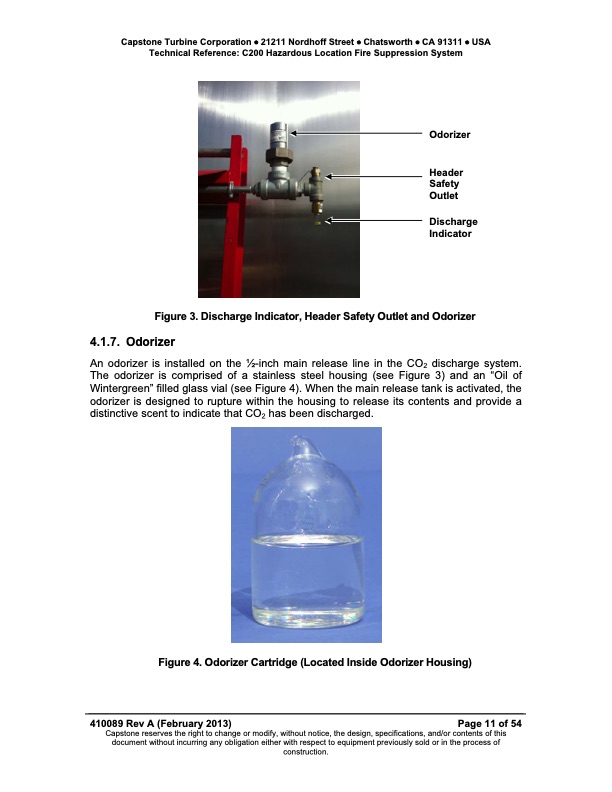

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA Technical Reference: C200 Hazardous Location Fire Suppression System Odorizer Header Safety Outlet Discharge Indicator Figure 3. Discharge Indicator, Header Safety Outlet and Odorizer 4.1.7. Odorizer An odorizer is installed on the 1⁄2-inch main release line in the CO2 discharge system. The odorizer is comprised of a stainless steel housing (see Figure 3) and an “Oil of Wintergreen” filled glass vial (see Figure 4). When the main release tank is activated, the odorizer is designed to rupture within the housing to release its contents and provide a distinctive scent to indicate that CO2 has been discharged. Figure 4. Odorizer Cartridge (Located Inside Odorizer Housing) 410089 Rev A (February 2013) Page 11 of 54 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference C200 Hazloc Fire Suppression System
