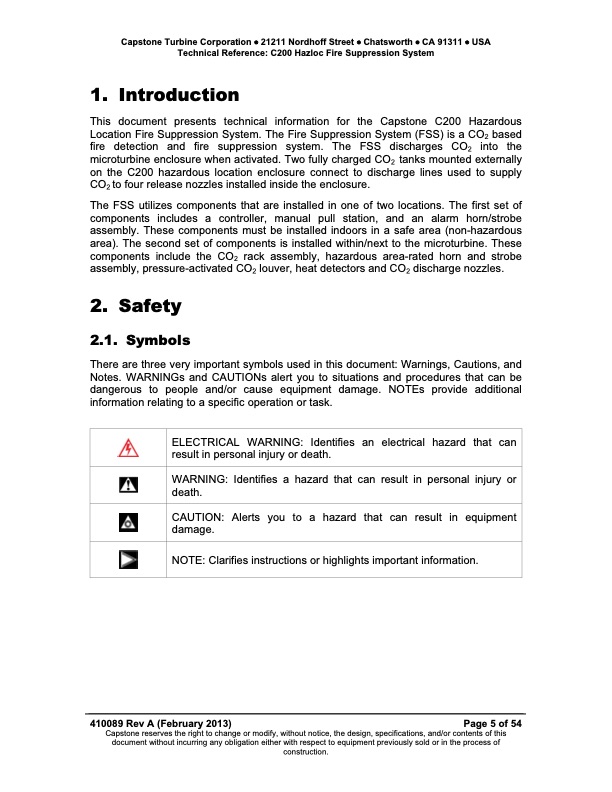

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA Technical Reference: C200 Hazloc Fire Suppression System 1. Introduction This document presents technical information for the Capstone C200 Hazardous Location Fire Suppression System. The Fire Suppression System (FSS) is a CO2 based fire detection and fire suppression system. The FSS discharges CO2 into the microturbine enclosure when activated. Two fully charged CO2 tanks mounted externally on the C200 hazardous location enclosure connect to discharge lines used to supply CO2 to four release nozzles installed inside the enclosure. The FSS utilizes components that are installed in one of two locations. The first set of components includes a controller, manual pull station, and an alarm horn/strobe assembly. These components must be installed indoors in a safe area (non-hazardous area). The second set of components is installed within/next to the microturbine. These components include the CO2 rack assembly, hazardous area-rated horn and strobe assembly, pressure-activated CO2 louver, heat detectors and CO2 discharge nozzles. 2. Safety 2.1. Symbols There are three very important symbols used in this document: Warnings, Cautions, and Notes. WARNINGs and CAUTIONs alert you to situations and procedures that can be dangerous to people and/or cause equipment damage. NOTEs provide additional information relating to a specific operation or task. ELECTRICAL WARNING: Identifies an electrical hazard that can result in personal injury or death. WARNING: Identifies a hazard that can result in personal injury or death. CAUTION: Alerts you to a hazard that can result in equipment damage. NOTE: Clarifies instructions or highlights important information. 410089 Rev A (February 2013) Page 5 of 54 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference C200 Hazloc Fire Suppression System
