Text from PDF Page: 012

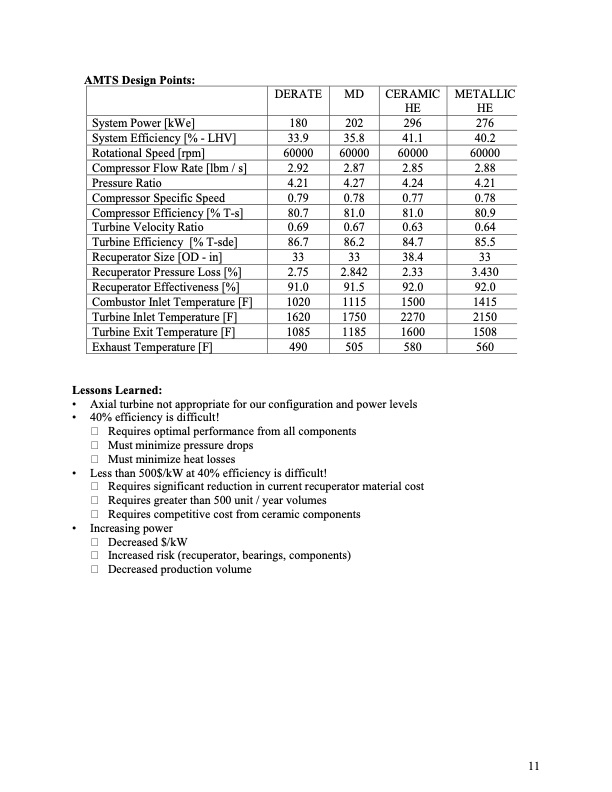

AMTS Design Points: System Power [kWe] System Efficiency [% - LHV] Rotational Speed [rpm] Compressor Flow Rate [lbm / s] Pressure Ratio Compressor Specific Speed Compressor Efficiency [% T-s] Turbine Velocity Ratio Turbine Efficiency [% T-sde] Recuperator Size [OD - in] Recuperator Pressure Loss [%] Recuperator Effectiveness [%] Combustor Inlet Temperature [F] Turbine Inlet Temperature [F] Turbine Exit Temperature [F] Exhaust Temperature [F] Lessons Learned: DERATE MD CERAMIC HE HE 180 202 296 276 33.9 35.8 41.1 40.2 60000 60000 60000 2.92 2.87 2.85 2.88 4.21 4.27 4.24 4.21 0.79 0.78 0.77 0.78 80.7 81.0 81.0 80.9 0.69 0.67 0.63 0.64 86.7 86.2 84.7 85.5 33 33 38.4 33 2.75 2.842 2.33 3.430 91.0 91.5 92.0 92.0 1020 1115 1500 1415 1620 1750 2270 2150 1085 1185 1600 1508 490 505 580 560 METALLIC 60000 • Axial turbine not appropriate for our configuration and power levels • 40% efficiency is difficult! Requires optimal performance from all components Must minimize pressure drops Must minimize heat losses • Less than 500$/kW at 40% efficiency is difficult! Requires significant reduction in current recuperator material cost Requires greater than 500 unit / year volumes Requires competitive cost from ceramic components • Increasing power Decreased $/kW Increased risk (recuperator, bearings, components) Decreased production volume 11PDF Image | Final Technical Report Advanced MicroTurbine System (AMTS) -C200 MicroTurbine -Ultra-Low Emissions MicroTurbine
PDF Search Title:
Final Technical Report Advanced MicroTurbine System (AMTS) -C200 MicroTurbine -Ultra-Low Emissions MicroTurbineOriginal File Name Searched:
