Text from PDF Page: 011

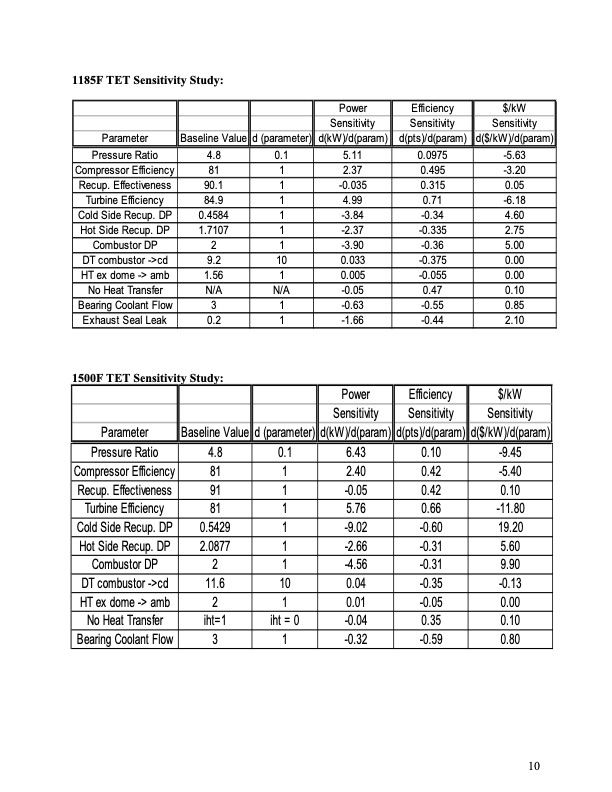

1185F TET Sensitivity Study: Power Efficiency $/kW Sensitivity Sensitivity Sensitivity Parameter Baseline Value d (parameter) d(kW)/d(param) d(pts)/d(param) d($/kW)/d(param) Pressure Ratio 4.8 0.1 5.11 0.0975 -5.63 Compressor Efficiency 81 1 2.37 0.495 -3.20 Recup. Effectiveness 90.1 1 -0.035 0.315 0.05 Turbine Efficiency 84.9 1 4.99 0.71 -6.18 Cold Side Recup. DP 0.4584 1 -3.84 -0.34 4.60 Hot Side Recup. DP 1.7107 1 -2.37 -0.335 2.75 Combustor DP 2 1 -3.90 -0.36 5.00 DT combustor ->cd 9.2 10 0.033 -0.375 0.00 HT ex dome -> amb 1.56 1 0.005 -0.055 0.00 No Heat Transfer N/A N/A -0.05 0.47 0.10 Bearing Coolant Flow 3 1 -0.63 -0.55 0.85 Exhaust Seal Leak 0.2 1 -1.66 -0.44 2.10 1500F TET Sensitivity Study: Power Efficiency $/kW Sensitivity Sensitivity Sensitivity Parameter Baseline Value d (parameter) d(kW)/d(param) d(pts)/d(param) d($/kW)/d(param) Pressure Ratio 4.8 0.1 6.43 0.10 -9.45 Compressor Efficiency 81 1 2.40 0.42 -5.40 Recup. Effectiveness 91 1 -0.05 0.42 0.10 Turbine Efficiency 81 1 5.76 0.66 -11.80 Cold Side Recup. DP 0.5429 1 -9.02 -0.60 19.20 Hot Side Recup. DP 2.0877 1 -2.66 -0.31 5.60 Combustor DP 2 1 -4.56 -0.31 9.90 DT combustor ->cd 11.6 10 0.04 -0.35 -0.13 HT ex dome -> amb 2 1 0.01 -0.05 0.00 No Heat Transfer iht=1 iht = 0 -0.04 0.35 0.10 Bearing Coolant Flow 3 1 -0.32 -0.59 0.80 10PDF Image | Final Technical Report Advanced MicroTurbine System (AMTS) -C200 MicroTurbine -Ultra-Low Emissions MicroTurbine
