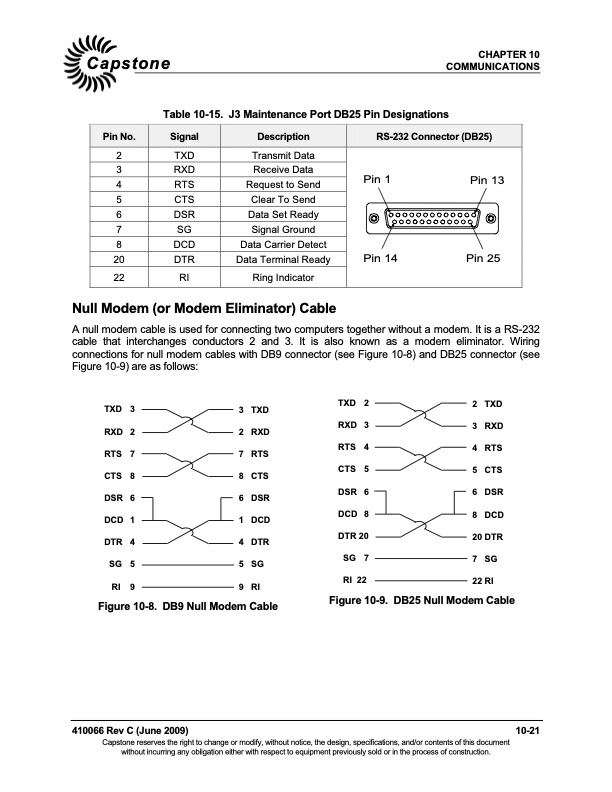

CHAPTER 10 Capstone COMMUNICATIONS 2 TXD 3 RXD 4 RTS 5 CTS 6 DSR 7 SG 8 DCD 20 DTR 22 RI Transmit Data Receive Data Request to Send Clear To Send Data Set Ready Signal Ground Data Carrier Detect Data Terminal Ready Ring Indicator Pin 1 Pin 14 Pin 13 Pin 25 Table 10-15. J3 Maintenance Port DB25 Pin Designations Pin No. Signal Description RS-232 Connector (DB25) Null Modem (or Modem Eliminator) Cable A null modem cable is used for connecting two computers together without a modem. It is a RS-232 cable that interchanges conductors 2 and 3. It is also known as a modem eliminator. Wiring connections for null modem cables with DB9 connector (see Figure 10-8) and DB25 connector (see Figure 10-9) are as follows: TXD 3 RXD 2 RTS 7 CTS 8 DSR 6 DCD 1 DTR 4 SG 5 RI 9 3 TXD 2 RXD 7 RTS 8 CTS 6 DSR 1 DCD 4 DTR 5SG 9RI TXD 2 RXD 3 RTS 4 CTS 5 DSR 6 DCD 8 DTR 20 2 TXD 3 RXD 4 RTS 5 CTS 6 DSR 8 DCD 20 DTR Figure 10-8. DB9 Null Modem Cable 410066 Rev C (June 2009) SG7 7SG RI 22 22 RI Figure 10-9. DB25 Null Modem Cable Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. 10-21PDF Image | CAPSTONE C200 MICROTURBINE TECHNICAL REFERENCE
