PDF Publication Title:
Text from PDF Page: 106

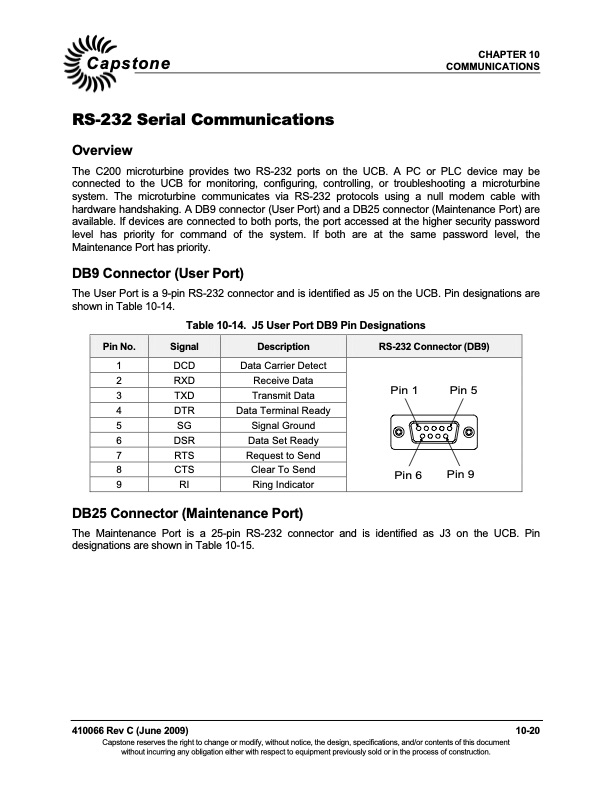

CHAPTER 10 Capstone COMMUNICATIONS RS-232 Serial Communications Overview The C200 microturbine provides two RS-232 ports on the UCB. A PC or PLC device may be connected to the UCB for monitoring, configuring, controlling, or troubleshooting a microturbine system. The microturbine communicates via RS-232 protocols using a null modem cable with hardware handshaking. A DB9 connector (User Port) and a DB25 connector (Maintenance Port) are available. If devices are connected to both ports, the port accessed at the higher security password level has priority for command of the system. If both are at the same password level, the Maintenance Port has priority. DB9 Connector (User Port) The User Port is a 9-pin RS-232 connector and is identified as J5 on the UCB. Pin designations are shown in Table 10-14. 1 DCD 2 RXD 3 TXD 4 DTR 5 SG 6 DSR 7 RTS 8 CTS 9 RI Data Carrier Detect Receive Data Transmit Data Data Terminal Ready Signal Ground Data Set Ready Request to Send Clear To Send Ring Indicator Pin 1 Pin 6 Pin 5 Pin 9 Table 10-14. J5 User Port DB9 Pin Designations Pin No. Signal Description RS-232 Connector (DB9) DB25 Connector (Maintenance Port) The Maintenance Port is a 25-pin RS-232 connector and is identified as J3 on the UCB. Pin designations are shown in Table 10-15. 410066 Rev C (June 2009) 10-20 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | CAPSTONE C200 MICROTURBINE TECHNICAL REFERENCE
PDF Search Title:
CAPSTONE C200 MICROTURBINE TECHNICAL REFERENCEOriginal File Name Searched:
410066C_C200_Tech_Ref.pdfDIY PDF Search: Google It | Yahoo | Bing
