Text from PDF Page: 089

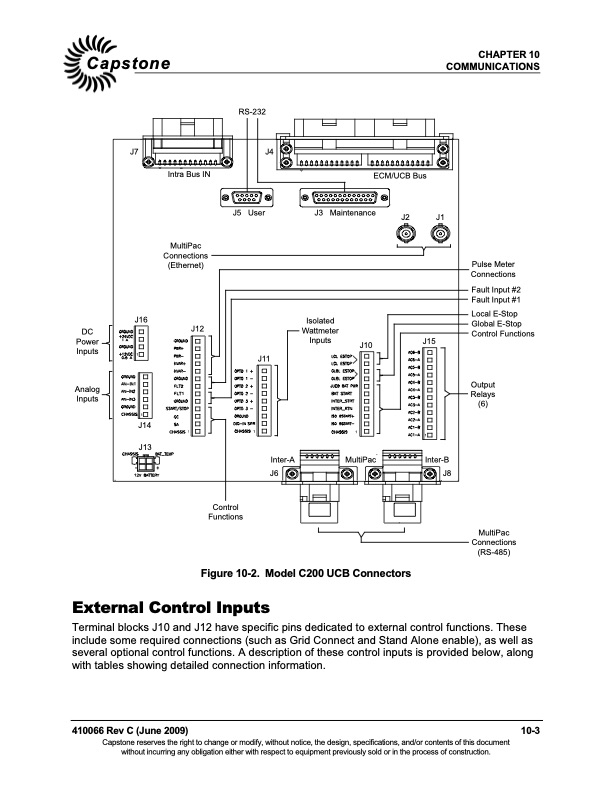

Capstone CHAPTER 10 COMMUNICATIONS RS-232 J7 J4 Intra Bus IN MultiPac Connections (Ethernet) J12 ECM/UCB Bus J5 User J3 Maintenance J2 J1 J16 J14 J13 Isolated Wattmeter Inputs J10 MultiPac J15 J11 Inter-A J6 Inter-B J8 DC Power Inputs Analog Inputs Pulse Meter Connections Fault Input #2 Fault Input #1 Local E-Stop Global E-Stop Control Functions Output Relays (6) Control Functions Figure 10-2. Model C200 UCB Connectors MultiPac Connections (RS-485) External Control Inputs Terminal blocks J10 and J12 have specific pins dedicated to external control functions. These include some required connections (such as Grid Connect and Stand Alone enable), as well as several optional control functions. A description of these control inputs is provided below, along with tables showing detailed connection information. 410066 Rev C (June 2009) 10-3 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | CAPSTONE C200 MICROTURBINE TECHNICAL REFERENCE
