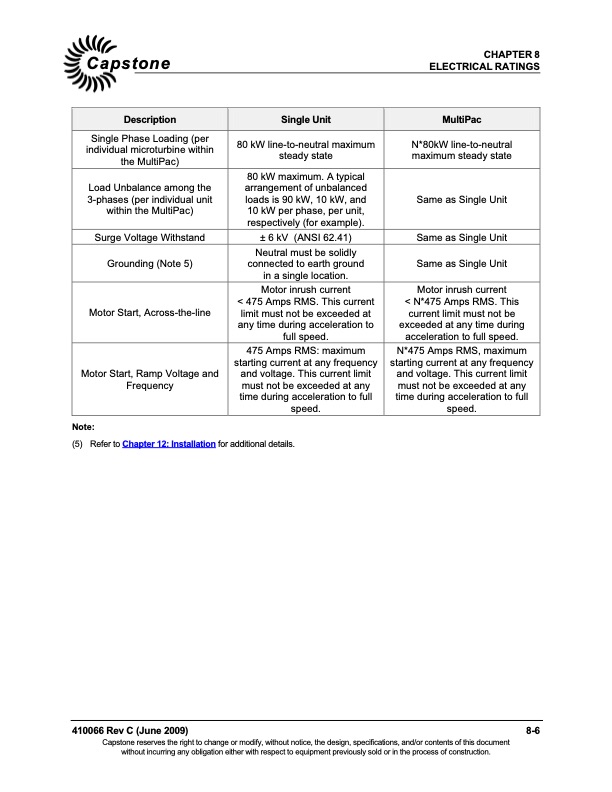

Capstone Single Phase Loading (per individual microturbine within the MultiPac) Surge Voltage Withstand Grounding (Note 5) 80 kW line-to-neutral maximum steady state ± 6 kV (ANSI 62.41) Neutral must be solidly connected to earth ground in a single location. CHAPTER 8 ELECTRICAL RATINGS N*80kW line-to-neutral maximum steady state Same as Single Unit Same as Single Unit Description Single Unit MultiPac Load Unbalance among the 3-phases (per individual unit within the MultiPac) 80 kW maximum. A typical arrangement of unbalanced loads is 90 kW, 10 kW, and 10 kW per phase, per unit, respectively (for example). Same as Single Unit Motor Start, Across-the-line Motor inrush current < 475 Amps RMS. This current limit must not be exceeded at any time during acceleration to full speed. Motor inrush current < N*475 Amps RMS. This current limit must not be exceeded at any time during acceleration to full speed. Motor Start, Ramp Voltage and Frequency 475 Amps RMS: maximum starting current at any frequency and voltage. This current limit must not be exceeded at any time during acceleration to full speed. N*475 Amps RMS, maximum starting current at any frequency and voltage. This current limit must not be exceeded at any time during acceleration to full speed. Note: (5) Refer to Chapter 12: Installation for additional details. 410066 Rev C (June 2009) 8-6 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | CAPSTONE C200 MICROTURBINE TECHNICAL REFERENCE
