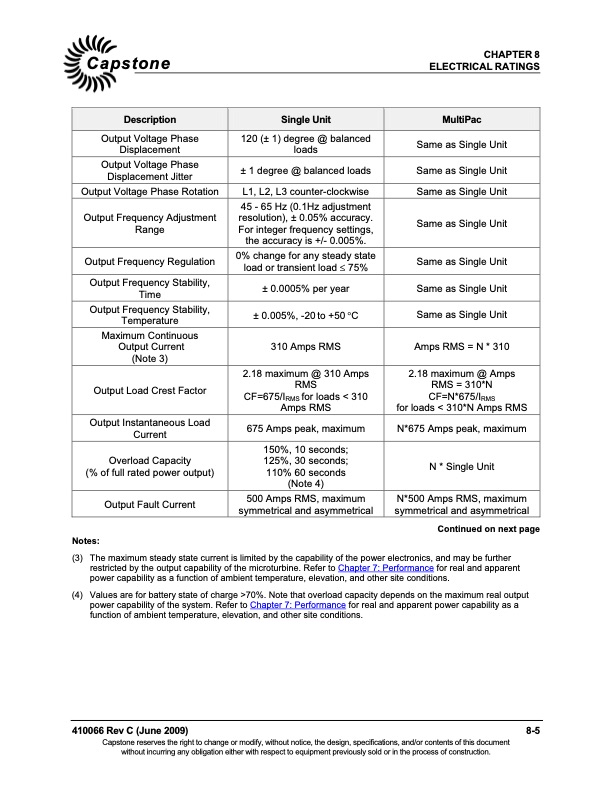

Capstone Output Voltage Phase Displacement Output Voltage Phase Displacement Jitter Output Voltage Phase Rotation Output Frequency Regulation Output Frequency Stability, Time Output Frequency Stability, Temperature Maximum Continuous Output Current (Note 3) Output Instantaneous Load Current Output Fault Current Notes: 120 (± 1) degree @ balanced loads ± 1 degree @ balanced loads L1, L2, L3 counter-clockwise 0% change for any steady state load or transient load 75% ± 0.0005% per year ± 0.005%, -20 to +50 C 310 Amps RMS 675 Amps peak, maximum 500 Amps RMS, maximum symmetrical and asymmetrical CHAPTER 8 ELECTRICAL RATINGS Same as Single Unit Same as Single Unit Same as Single Unit Same as Single Unit Same as Single Unit Same as Single Unit Amps RMS = N * 310 N*675 Amps peak, maximum N*500 Amps RMS, maximum symmetrical and asymmetrical Continued on next page Description Single Unit MultiPac Output Frequency Adjustment Range 45 - 65 Hz (0.1Hz adjustment resolution), ± 0.05% accuracy. For integer frequency settings, the accuracy is +/- 0.005%. Same as Single Unit Output Load Crest Factor 2.18 maximum @ 310 Amps RMS CF=675/IRMS for loads < 310 Amps RMS 2.18 maximum @ Amps RMS = 310*N CF=N*675/IRMS for loads < 310*N Amps RMS Overload Capacity (% of full rated power output) 150%, 10 seconds; 125%, 30 seconds; 110% 60 seconds (Note 4) N * Single Unit (3) The maximum steady state current is limited by the capability of the power electronics, and may be further restricted by the output capability of the microturbine. Refer to Chapter 7: Performance for real and apparent power capability as a function of ambient temperature, elevation, and other site conditions. (4) Values are for battery state of charge >70%. Note that overload capacity depends on the maximum real output power capability of the system. Refer to Chapter 7: Performance for real and apparent power capability as a function of ambient temperature, elevation, and other site conditions. 410066 Rev C (June 2009) 8-5 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | CAPSTONE C200 MICROTURBINE TECHNICAL REFERENCE
