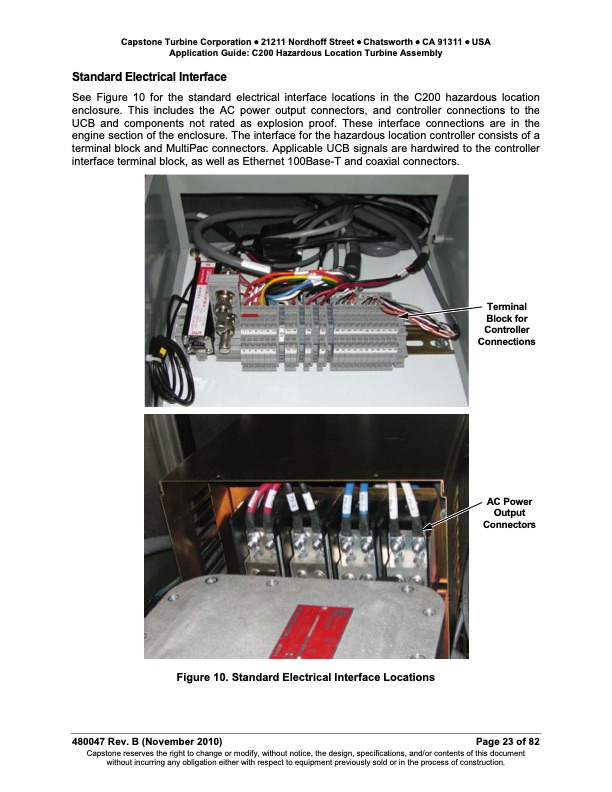

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Application Guide: C200 Hazardous Location Turbine Assembly Standard Electrical Interface See Figure 10 for the standard electrical interface locations in the C200 hazardous location enclosure. This includes the AC power output connectors, and controller connections to the UCB and components not rated as explosion proof. These interface connections are in the engine section of the enclosure. The interface for the hazardous location controller consists of a terminal block and MultiPac connectors. Applicable UCB signals are hardwired to the controller interface terminal block, as well as Ethernet 100Base-T and coaxial connectors. Figure 10. Standard Electrical Interface Locations 480047 Rev. B (November 2010) Page 23 of 82 Terminal Block for Controller Connections AC Power Output Connectors Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Application Guide Capstone Model C200 Hazardous Location Turbine Assembly
