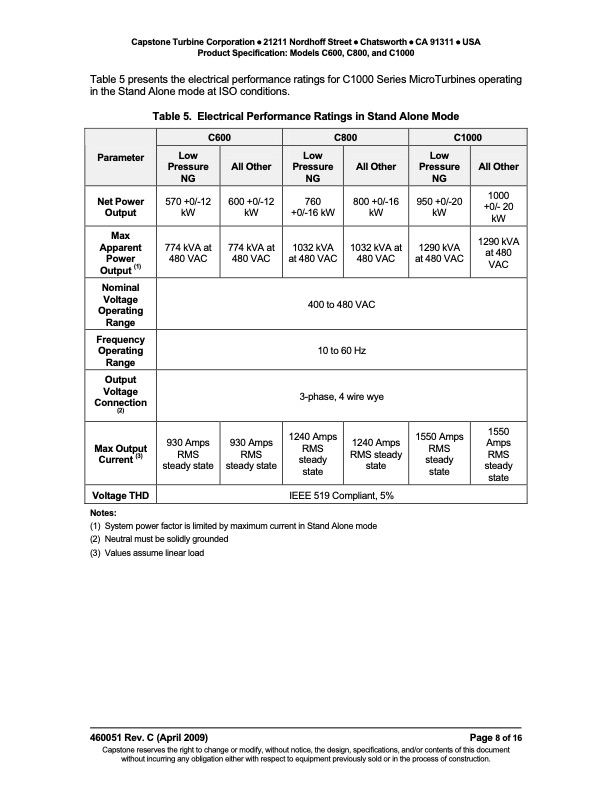

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA Product Specification: Models C600, C800, and C1000 Table 5 presents the electrical performance ratings for C1000 Series MicroTurbines operating in the Stand Alone mode at ISO conditions. Net Power Output Frequency Operating Range 570 +0/-12 kW 600 +0/-12 kW 760 +0/-16 kW 800 +0/-16 kW 950 +0/-20 kW 1000 +0/- 20 kW Table 5. Electrical Performance Ratings in Stand Alone Mode Parameter C600 C800 C1000 Low Pressure NG All Other Low Pressure NG All Other Low Pressure NG All Other Max Apparent Power Output (1) 774 kVA at 480 VAC 774 kVA at 480 VAC 1032 kVA at 480 VAC 1032 kVA at 480 VAC 1290 kVA at 480 VAC 1290 kVA at 480 VAC Nominal Voltage Operating Range 400 to 480 VAC 10 to 60 Hz Output Voltage Connection (2) 3-phase, 4 wire wye Max Output Current (3) 930 Amps RMS steady state 930 Amps RMS steady state 1240 Amps RMS steady state 1240 Amps RMS steady state 1550 Amps RMS steady state 1550 Amps RMS steady state Voltage THD Notes: IEEE 519 Compliant, 5% (1) System power factor is limited by maximum current in Stand Alone mode (2) Neutral must be solidly grounded (3) Values assume linear load 460051 Rev. C (April 2009) Page 8 of 16 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Product Specification Models C600, C800, and C1000 Capstone MicroTurbine
