Text from PDF Page: 007

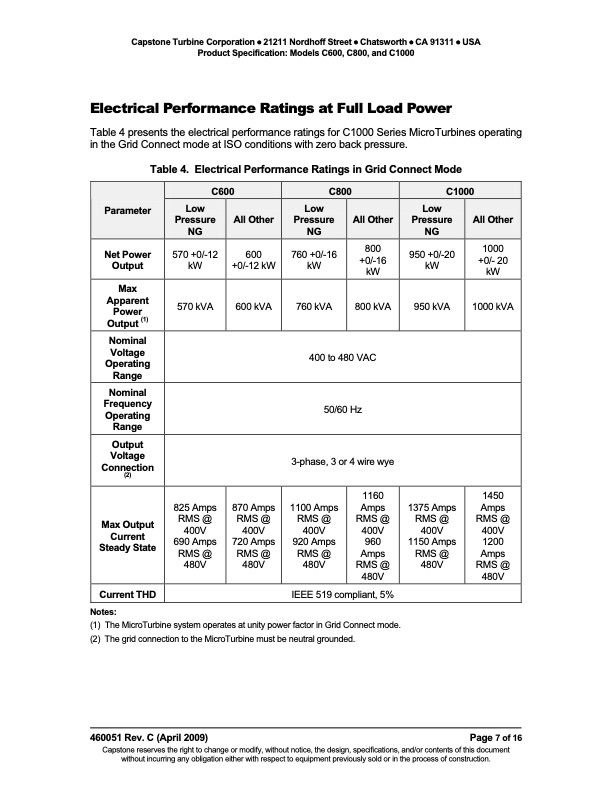

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA Product Specification: Models C600, C800, and C1000 Electrical Performance Ratings at Full Load Power Table 4 presents the electrical performance ratings for C1000 Series MicroTurbines operating in the Grid Connect mode at ISO conditions with zero back pressure. Net Power Output 570 +0/-12 kW 600 +0/-12 kW 760 +0/-16 800 kW +0/-16 kW 950 +0/-20 kW 1000 +0/- 20 kW Current THD Notes: IEEE 519 compliant, 5% Table 4. Electrical Performance Ratings in Grid Connect Mode Parameter C600 C800 C1000 Low Pressure NG All Other Low Pressure NG All Other Low Pressure NG All Other Max Apparent Power Output (1) 570 kVA 600 kVA 760 kVA 800 kVA 950 kVA 1000 kVA Nominal Voltage Operating Range 400 to 480 VAC Nominal Frequency Operating Range 50/60 Hz Output Voltage Connection (2) 3-phase, 3 or 4 wire wye Max Output Current Steady State 825 Amps RMS @ 400V 690 Amps RMS @ 480V 870 Amps RMS @ 400V 720 Amps RMS @ 480V 1100 Amps RMS @ 400V 920 Amps RMS @ 480V 1160 Amps RMS @ 400V 960 Amps RMS @ 480V 1375 Amps RMS @ 400V 1150 Amps RMS @ 480V 1450 Amps RMS @ 400V 1200 Amps RMS @ 480V (1) The MicroTurbine system operates at unity power factor in Grid Connect mode. (2) The grid connection to the MicroTurbine must be neutral grounded. 460051 Rev. C (April 2009) Page 7 of 16 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Product Specification Models C600, C800, and C1000 Capstone MicroTurbine
PDF Search Title:
Product Specification Models C600, C800, and C1000 Capstone MicroTurbineOriginal File Name Searched:
460051_RevC_C1000_Product_Specification.pdfDIY PDF Search: Google It | Yahoo | Bing
