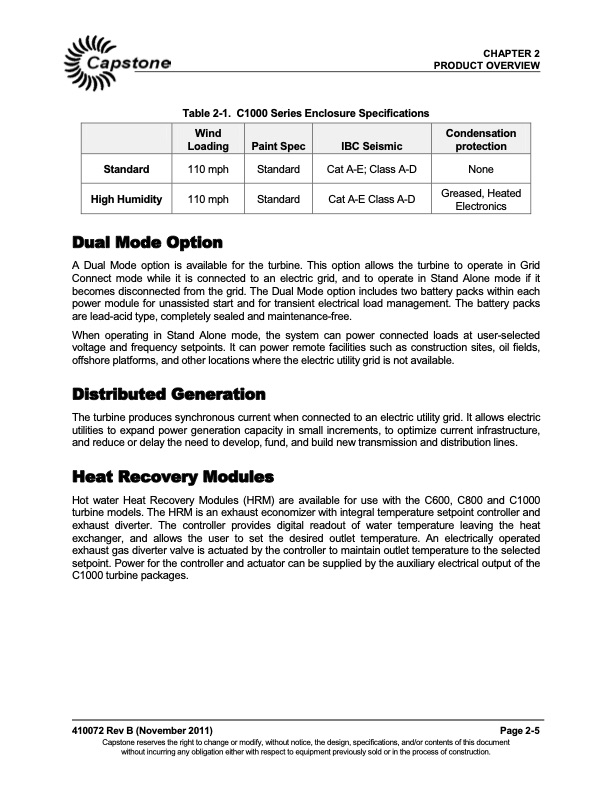

CHAPTER 2 PRODUCT OVERVIEW Table 2-1. C1000 Series Enclosure Specifications Wind Loading Condensation protection Paint Spec IBC Seismic Standard High Humidity 110 mph Standard Cat A-E; Class A-D None 110 mph Standard Cat A-E Class A-D Greased, Heated Electronics Dual Mode Option A Dual Mode option is available for the turbine. This option allows the turbine to operate in Grid Connect mode while it is connected to an electric grid, and to operate in Stand Alone mode if it becomes disconnected from the grid. The Dual Mode option includes two battery packs within each power module for unassisted start and for transient electrical load management. The battery packs are lead-acid type, completely sealed and maintenance-free. When operating in Stand Alone mode, the system can power connected loads at user-selected voltage and frequency setpoints. It can power remote facilities such as construction sites, oil fields, offshore platforms, and other locations where the electric utility grid is not available. Distributed Generation The turbine produces synchronous current when connected to an electric utility grid. It allows electric utilities to expand power generation capacity in small increments, to optimize current infrastructure, and reduce or delay the need to develop, fund, and build new transmission and distribution lines. Heat Recovery Modules Hot water Heat Recovery Modules (HRM) are available for use with the C600, C800 and C1000 turbine models. The HRM is an exhaust economizer with integral temperature setpoint controller and exhaust diverter. The controller provides digital readout of water temperature leaving the heat exchanger, and allows the user to set the desired outlet temperature. An electrically operated exhaust gas diverter valve is actuated by the controller to maintain outlet temperature to the selected setpoint. Power for the controller and actuator can be supplied by the auxiliary electrical output of the C1000 turbine packages. 410072 Rev B (November 2011) Page 2-5 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | CAPSTONE C1000 SERIES MICROTURBINE SYSTEMS TECHNICAL REFERENCE
