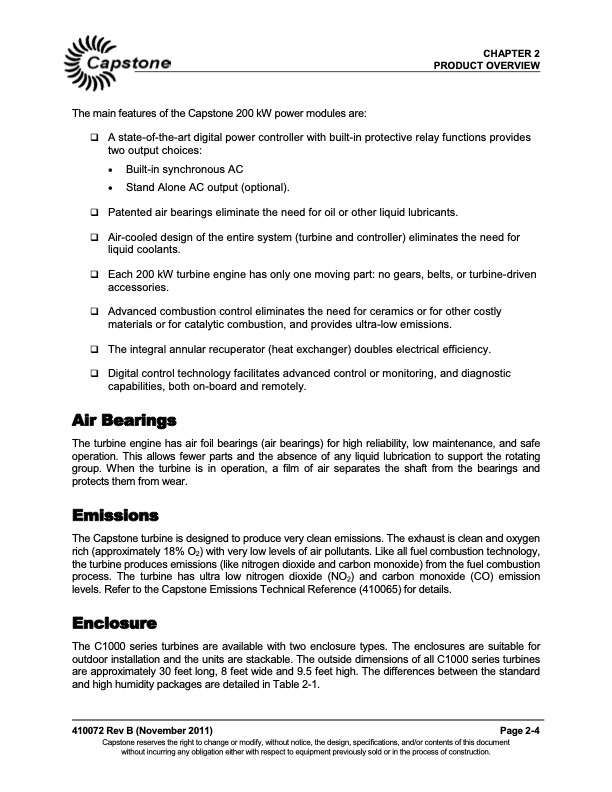

The main features of the Capstone 200 kW power modules are: A state-of-the-art digital power controller with built-in protective relay functions provides two output choices: • Built-in synchronous AC • Stand Alone AC output (optional). Patented air bearings eliminate the need for oil or other liquid lubricants. Air-cooled design of the entire system (turbine and controller) eliminates the need for liquid coolants. Each 200 kW turbine engine has only one moving part: no gears, belts, or turbine-driven accessories. Advanced combustion control eliminates the need for ceramics or for other costly materials or for catalytic combustion, and provides ultra-low emissions. The integral annular recuperator (heat exchanger) doubles electrical efficiency. Digital control technology facilitates advanced control or monitoring, and diagnostic capabilities, both on-board and remotely. Air Bearings The turbine engine has air foil bearings (air bearings) for high reliability, low maintenance, and safe operation. This allows fewer parts and the absence of any liquid lubrication to support the rotating group. When the turbine is in operation, a film of air separates the shaft from the bearings and protects them from wear. Emissions The Capstone turbine is designed to produce very clean emissions. The exhaust is clean and oxygen rich (approximately 18% O2) with very low levels of air pollutants. Like all fuel combustion technology, the turbine produces emissions (like nitrogen dioxide and carbon monoxide) from the fuel combustion process. The turbine has ultra low nitrogen dioxide (NO2) and carbon monoxide (CO) emission levels. Refer to the Capstone Emissions Technical Reference (410065) for details. Enclosure The C1000 series turbines are available with two enclosure types. The enclosures are suitable for outdoor installation and the units are stackable. The outside dimensions of all C1000 series turbines are approximately 30 feet long, 8 feet wide and 9.5 feet high. The differences between the standard and high humidity packages are detailed in Table 2-1. 410072 Rev B (November 2011) Page 2-4 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. CHAPTER 2 PRODUCT OVERVIEWPDF Image | CAPSTONE C1000 SERIES MICROTURBINE SYSTEMS TECHNICAL REFERENCE
