PDF Publication Title:
Text from PDF Page: 073

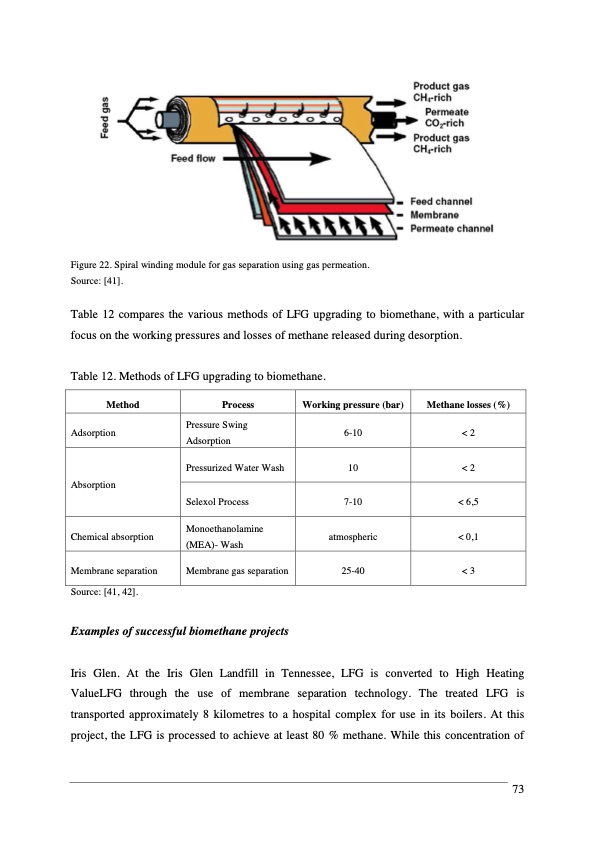

Figure 22. Spiral winding module for gas separation using gas permeation. Source: [41]. Table 12 compares the various methods of LFG upgrading to biomethane, with a particular focus on the working pressures and losses of methane released during desorption. Table 12. Methods of LFG upgrading to biomethane. Method Adsorption Absorption Chemical absorption Membrane separation Source: [41, 42]. Process Pressure Swing Adsorption Pressurized Water Wash Selexol Process Monoethanolamine (MEA)- Wash Membrane gas separation Working pressure (bar) 6-10 10 7-10 atmospheric 25-40 Methane losses (%) < 2 < 2 < 6,5 < 0,1 < 3 Examples of successful biomethane projects Iris Glen. At the Iris Glen Landfill in Tennessee, LFG is converted to High Heating ValueLFG through the use of membrane separation technology. The treated LFG is transported approximately 8 kilometres to a hospital complex for use in its boilers. At this project, the LFG is processed to achieve at least 80 % methane. While this concentration of 73PDF Image | Landfill Gas Energy Technologies
