PDF Publication Title:
Text from PDF Page: 042

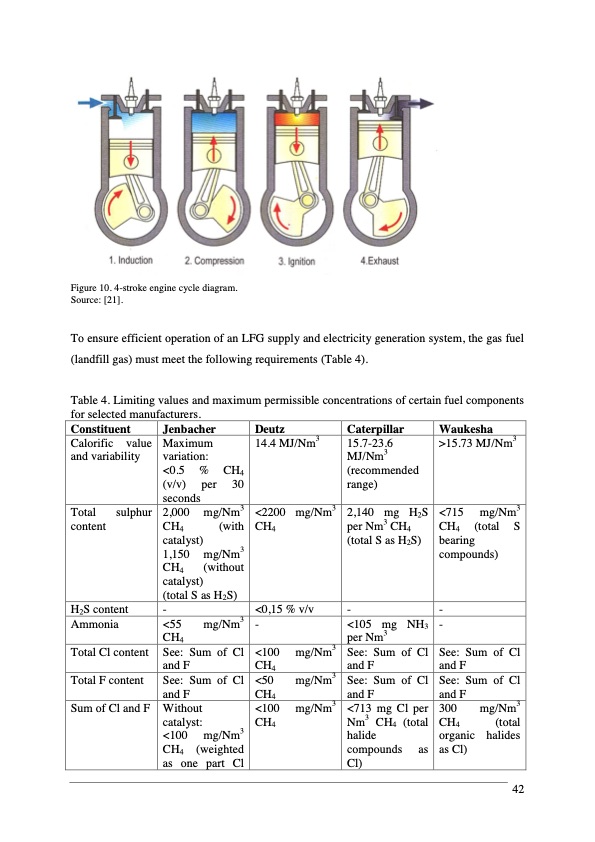

Figure 10. 4-stroke engine cycle diagram. Source: [21]. To ensure efficient operation of an LFG supply and electricity generation system, the gas fuel (landfill gas) must meet the following requirements (Table 4). Table 4. Limiting values and maximum permissible concentrations of certain fuel components for selected manufacturers. Constituent Jenbacher Deutz Caterpillar Waukesha Calorific value and variability Maximum variation: <0.5 % CH4 (v/v) per 30 seconds 3 14.4 MJ/Nm 15.7-23.6 3 MJ/Nm (recommended range) 3 >15.73 MJ/Nm Total sulphur content 3 2,000 mg/Nm CH4 (with catalyst) 1,150 mg/Nm CH4 (without catalyst) (total S as H2S) 3 <2200 mg/Nm CH4 3 2,140 mg H2S 3 perNm CH4 (total S as H2S) 3 <715 mg/Nm CH4 (total S bearing compounds) H2S content Ammonia Total Cl content Total F content - <55 mg/Nm CH4 See: Sum of Cl and F See: Sum of Cl and F <0,15 % v/v - <100 mg/Nm CH4 <50 mg/Nm CH4 - <105 mg NH3 3 per Nm See: Sum of Cl and F See: Sum of Cl and F - - See: Sum of Cl and F See: Sum of Cl and F 3 3 3 Sum of Cl and F Without catalyst: <100 mg/Nm CH4 (weighted as one part Cl 3 <100 mg/Nm CH4 3 <713 mg Cl per 3 Nm CH4 (total halide compounds as Cl) 3 300 mg/Nm CH4 (total organic halides as Cl) 42PDF Image | Landfill Gas Energy Technologies
PDF Search Title:
Landfill Gas Energy TechnologiesOriginal File Name Searched:
1022_LFG-Handbook.pdfDIY PDF Search: Google It | Yahoo | Bing
