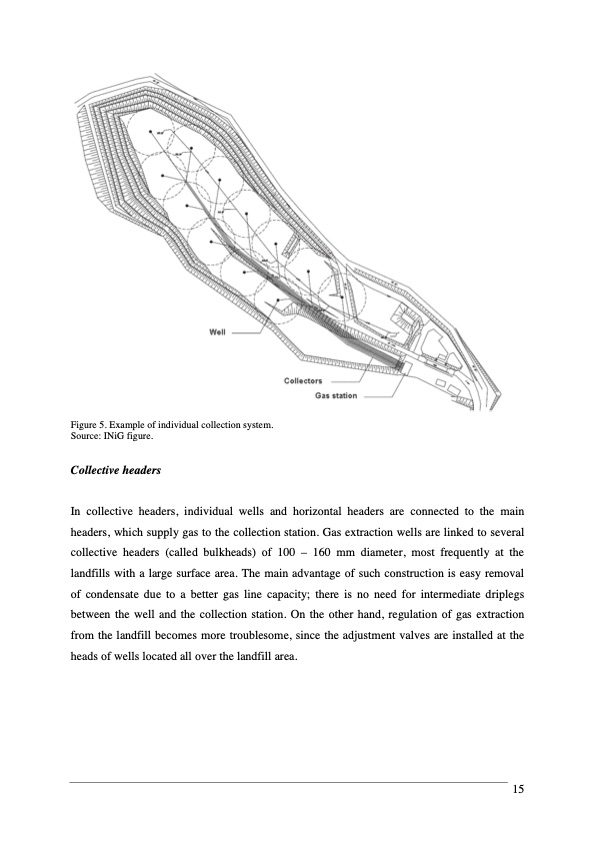

Figure 5. Example of individual collection system. Source: INiG figure. Collective headers In collective headers, individual wells and horizontal headers are connected to the main headers, which supply gas to the collection station. Gas extraction wells are linked to several collective headers (called bulkheads) of 100 – 160 mm diameter, most frequently at the landfills with a large surface area. The main advantage of such construction is easy removal of condensate due to a better gas line capacity; there is no need for intermediate driplegs between the well and the collection station. On the other hand, regulation of gas extraction from the landfill becomes more troublesome, since the adjustment valves are installed at the heads of wells located all over the landfill area. 15PDF Image | Landfill Gas Energy Technologies
