PDF Publication Title:

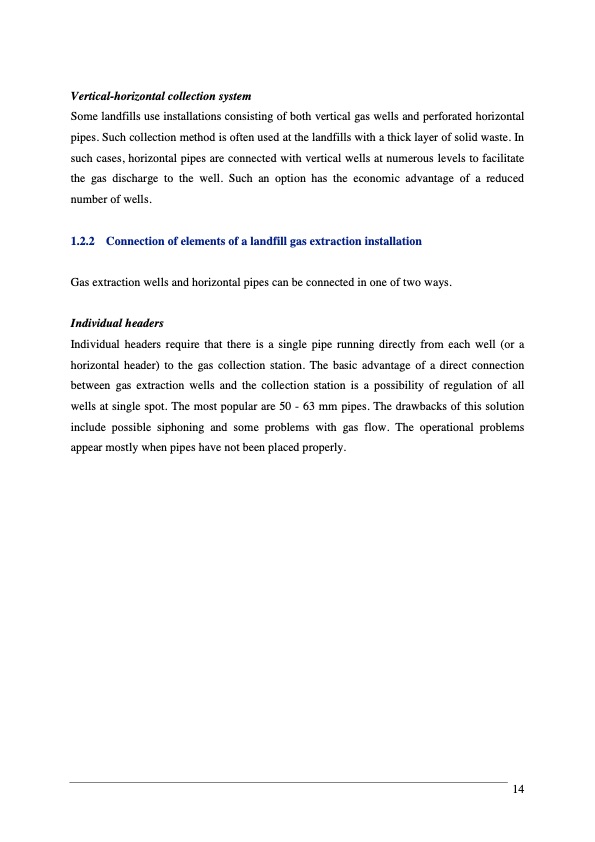

Text from PDF Page: 014
Vertical-horizontal collection system Some landfills use installations consisting of both vertical gas wells and perforated horizontal pipes. Such collection method is often used at the landfills with a thick layer of solid waste. In such cases, horizontal pipes are connected with vertical wells at numerous levels to facilitate the gas discharge to the well. Such an option has the economic advantage of a reduced number of wells. 1.2.2 Connection of elements of a landfill gas extraction installation Gas extraction wells and horizontal pipes can be connected in one of two ways. Individual headers Individual headers require that there is a single pipe running directly from each well (or a horizontal header) to the gas collection station. The basic advantage of a direct connection between gas extraction wells and the collection station is a possibility of regulation of all wells at single spot. The most popular are 50 - 63 mm pipes. The drawbacks of this solution include possible siphoning and some problems with gas flow. The operational problems appear mostly when pipes have not been placed properly. 14PDF Image | Landfill Gas Energy Technologies
