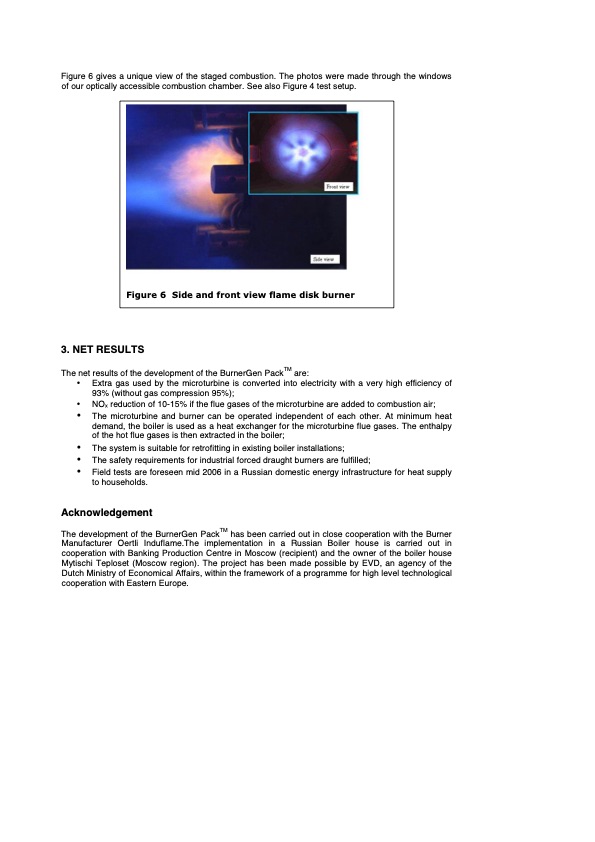

Figure 6 gives a unique view of the staged combustion. The photos were made through the windows of our optically accessible combustion chamber. See also Figure 4 test setup. 3. NET RESULTS TM The net results of the development of the BurnerGen Pack • Extra gas used by the microturbine is converted into electricity with a very high efficiency of 93% (without gas compression 95%); • NOx reduction of 10-15% if the flue gases of the microturbine are added to combustion air; • The microturbine and burner can be operated independent of each other. At minimum heat demand, the boiler is used as a heat exchanger for the microturbine flue gases. The enthalpy of the hot flue gases is then extracted in the boiler; • The system is suitable for retrofitting in existing boiler installations; • The safety requirements for industrial forced draught burners are fulfilled; • Field tests are foreseen mid 2006 in a Russian domestic energy infrastructure for heat supply to households. Acknowledgement TM The development of the BurnerGen Pack Manufacturer Oertli Induflame.The implementation in a Russian Boiler house is carried out in cooperation with Banking Production Centre in Moscow (recipient) and the owner of the boiler house Mytischi Teploset (Moscow region). The project has been made possible by EVD, an agency of the Dutch Ministry of Economical Affairs, within the framework of a programme for high level technological cooperation with Eastern Europe. Figure 6 Side and front view flame disk burner are: has been carried out in close cooperation with the BurnerPDF Image | SELF POWERED BOILER HOUSE: A NOVEL METHOD FOR INCORPORATING A MICRO TURBINE INTO AN EXISTING DOMESTIC ENERGY INFRASTRUCTURE FOR HEAT SUPPLY TO HOUSEHOLDS
PDF Search Title:
SELF POWERED BOILER HOUSE: A NOVEL METHOD FOR INCORPORATING A MICRO TURBINE INTO AN EXISTING DOMESTIC ENERGY INFRASTRUCTURE FOR HEAT SUPPLY TO HOUSEHOLDSOriginal File Name Searched:
