Text from PDF Page: 007

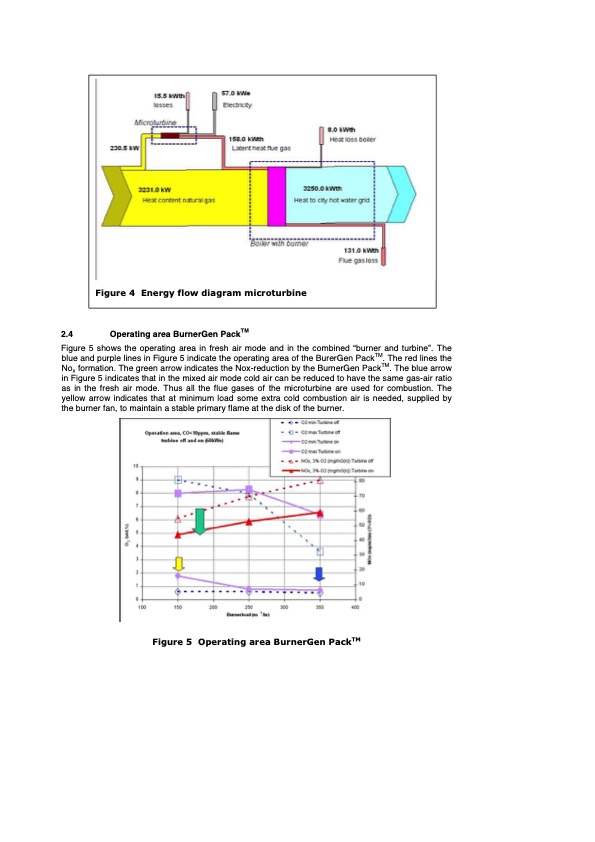

Figure 4 Energy flow diagram microturbine 2.4 Operating area BurnerGen Pack TM Figure 5 shows the operating area in fresh air mode and in the combined “burner and turbine”. The TM blue and purple lines in Figure 5 indicate the operating area of the BurerGen Pack . The red lines the TM Nox formation. The green arrow indicates the Nox-reduction by the BurnerGen Pack in Figure 5 indicates that in the mixed air mode cold air can be reduced to have the same gas-air ratio as in the fresh air mode. Thus all the flue gases of the microturbine are used for combustion. The yellow arrow indicates that at minimum load some extra cold combustion air is needed, supplied by the burner fan, to maintain a stable primary flame at the disk of the burner. Figure 5 Operating area BurnerGen PackTM . The blue arrow
