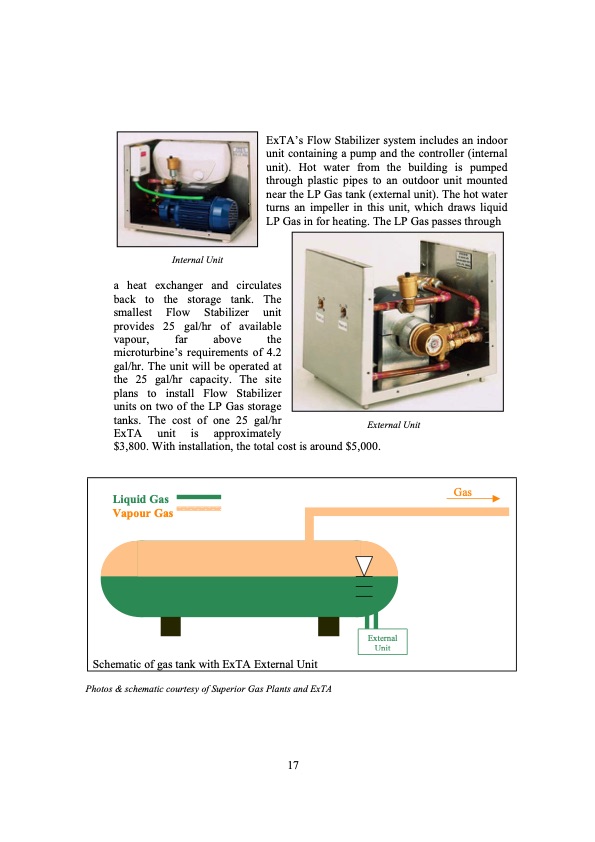

Internal Unit a heat exchanger and circulates back to the storage tank. The smallest Flow Stabilizer unit provides 25 gal/hr of available vapour, far above the microturbine’s requirements of 4.2 gal/hr. The unit will be operated at the 25 gal/hr capacity. The site plans to install Flow Stabilizer units on two of the LP Gas storage tanks. The cost of one 25 gal/hr ExTA unit is approximately $3,800. With installation, the total cost is around $5,000. ExTA’s Flow Stabilizer system includes an indoor unit containing a pump and the controller (internal unit). Hot water from the building is pumped through plastic pipes to an outdoor unit mounted near the LP Gas tank (external unit). The hot water turns an impeller in this unit, which draws liquid LP Gas in for heating. The LP Gas passes through External Unit Gas Liquid Gas Vapour Gas Schematic of gas tank with ExTA External Unit External Unit Photos & schematic courtesy of Superior Gas Plants and ExTA 17PDF Image | Glotec Global Technology Network LP Gas Use in Microturbine Applications
