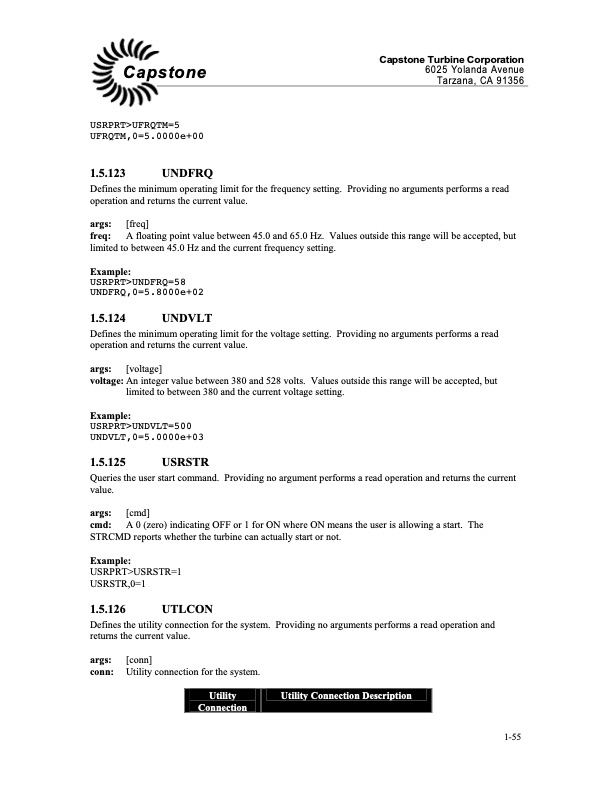

Text from PDF Page: 062

Capstone Capstone Turbine Corporation 6025 Yolanda Avenue Tarzana, CA 91356 USRPRT>UFRQTM=5 UFRQTM,0=5.0000e+00 1.5.123 UNDFRQ Defines the minimum operating limit for the frequency setting. Providing no arguments performs a read operation and returns the current value. args: [freq] freq: A floating point value between 45.0 and 65.0 Hz. Values outside this range will be accepted, but limited to between 45.0 Hz and the current frequency setting. Example: USRPRT>UNDFRQ=58 UNDFRQ,0=5.8000e+02 1.5.124 UNDVLT Defines the minimum operating limit for the voltage setting. Providing no arguments performs a read operation and returns the current value. args: [voltage] voltage: An integer value between 380 and 528 volts. Values outside this range will be accepted, but limited to between 380 and the current voltage setting. Example: USRPRT>UNDVLT=500 UNDVLT,0=5.0000e+03 1.5.125 USRSTR Queries the user start command. Providing no argument performs a read operation and returns the current value. args: [cmd] cmd: A 0 (zero) indicating OFF or 1 for ON where ON means the user is allowing a start. The STRCMD reports whether the turbine can actually start or not. Example: USRPRT>USRSTR=1 USRSTR,0=1 1.5.126 UTLCON Defines the utility connection for the system. Providing no arguments performs a read operation and returns the current value. args: [conn] conn: Utility connection for the system. Utility Connection Utility Connection Description 1-55
