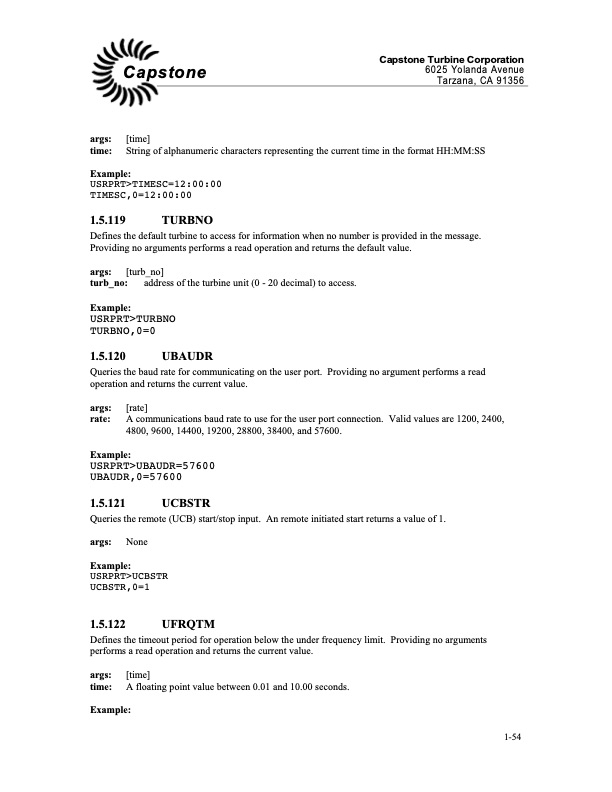

Capstone Turbine Corporation 6025 Yolanda Avenue Tarzana, CA 91356 [time] String of alphanumeric characters representing the current time in the format HH:MM:SS Capstone args: time: Example: USRPRT>TIMESC=12:00:00 TIMESC,0=12:00:00 1.5.119 TURBNO Defines the default turbine to access for information when no number is provided in the message. Providing no arguments performs a read operation and returns the default value. args: [turb_no] turb_no: address of the turbine unit (0 - 20 decimal) to access. Example: USRPRT>TURBNO TURBNO,0=0 1.5.120 UBAUDR Queries the baud rate for communicating on the user port. Providing no argument performs a read operation and returns the current value. args: [rate] rate: A communications baud rate to use for the user port connection. Valid values are 1200, 2400, 4800, 9600, 14400, 19200, 28800, 38400, and 57600. Example: USRPRT>UBAUDR=57600 UBAUDR,0=57600 1.5.121 UCBSTR Queries the remote (UCB) start/stop input. An remote initiated start returns a value of 1. args: None Example: USRPRT>UCBSTR UCBSTR,0=1 1.5.122 UFRQTM Defines the timeout period for operation below the under frequency limit. Providing no arguments performs a read operation and returns the current value. args: [time] time: A floating point value between 0.01 and 10.00 seconds. Example: 1-54PDF Image | Engineering Specification Communication Protocol
PDF Search Title:
Engineering Specification Communication ProtocolOriginal File Name Searched:
ES0325_DPC_User_Maint_Comm_Maint.pdfDIY PDF Search: Google It | Yahoo | Bing
