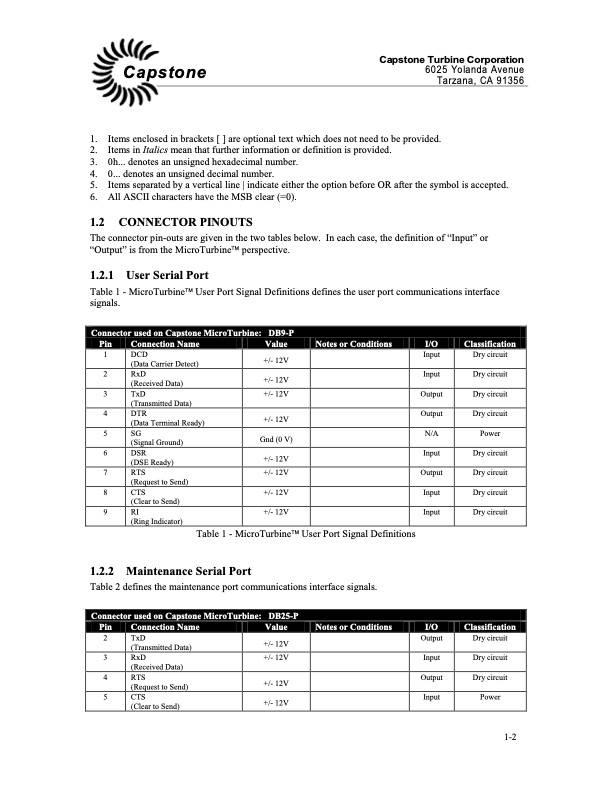

Capstone Turbine Corporation 6025 Yolanda Avenue Tarzana, CA 91356 1. Items enclosed in brackets [ ] are optional text which does not need to be provided. 2. Items in Italics mean that further information or definition is provided. 3. 0h... denotes an unsigned hexadecimal number. 4. 0... denotes an unsigned decimal number. 5. Items separated by a vertical line | indicate either the option before OR after the symbol is accepted. 6. All ASCII characters have the MSB clear (=0). 1.2 CONNECTOR PINOUTS The connector pin-outs are given in the two tables below. In each case, the definition of “Input” or “Output” is from the MicroTurbine perspective. 1.2.1 User Serial Port Table 1 - MicroTurbine User Port Signal Definitions defines the user port communications interface signals. Capstone Connector used on Capstone MicroTurbine: DB9-P Pin Connection Name Value Notes or Conditions I/O Classification 1 DCD (Data Carrier Detect) 2 RxD (Received Data) 3 TxD (Transmitted Data) 4 DTR (Data Terminal Ready) 5 SG (Signal Ground) 6 DSR (DSE Ready) 7 RTS (Request to Send) 8 CTS (Clear to Send) 9 RI (Ring Indicator) +/- 12V +/- 12V +/- 12V +/- 12V Gnd (0 V) +/- 12V +/- 12V +/- 12V +/- 12V Input Input Output Output N/A Input Output Input Input Dry circuit Dry circuit Dry circuit Dry circuit Power Dry circuit Dry circuit Dry circuit Dry circuit Table 1 - MicroTurbine User Port Signal Definitions 1.2.2 Maintenance Serial Port Table 2 defines the maintenance port communications interface signals. Connector used on Capstone MicroTurbine: DB25-P Pin Connection Name Value Notes or Conditions I/O Classification 2 TxD (Transmitted Data) 3 RxD (Received Data) 4 RTS (Request to Send) 5 CTS (Clear to Send) +/- 12V +/- 12V +/- 12V +/- 12V Output Input Output Input Dry circuit Dry circuit Dry circuit Power 1-2PDF Image | Engineering Specification Communication Protocol
