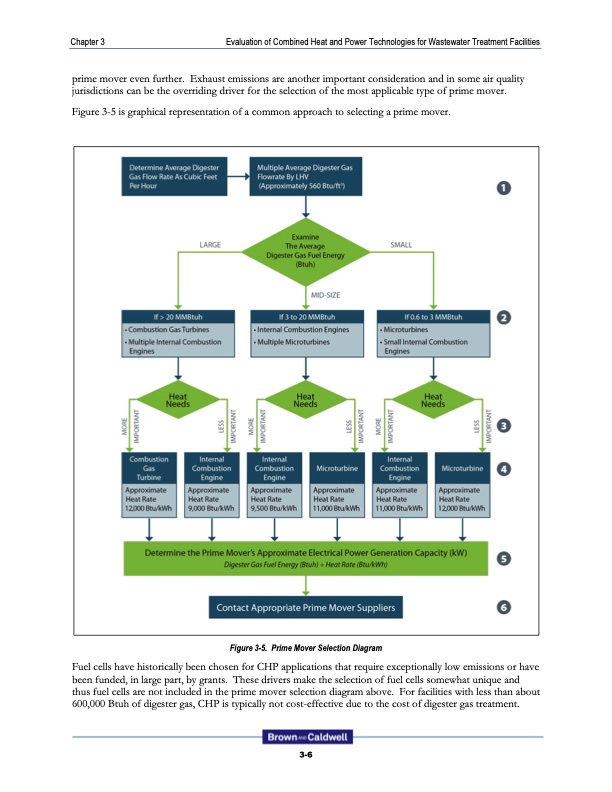

Chapter 3 Evaluation of Combined Heat and Power Technologies for Wastewater Treatment Facilities prime mover even further. Exhaust emissions are another important consideration and in some air quality jurisdictions can be the overriding driver for the selection of the most applicable type of prime mover. Figure 3-5 is graphical representation of a common approach to selecting a prime mover. Figure 3-5. Prime Mover Selection Diagram Fuel cells have historically been chosen for CHP applications that require exceptionally low emissions or have been funded, in large part, by grants. These drivers make the selection of fuel cells somewhat unique and thus fuel cells are not included in the prime mover selection diagram above. For facilities with less than about 600,000 Btuh of digester gas, CHP is typically not cost-effective due to the cost of digester gas treatment. 3-6PDF Image | Combined Heat and Power Technologies for Wastewater Facilities
