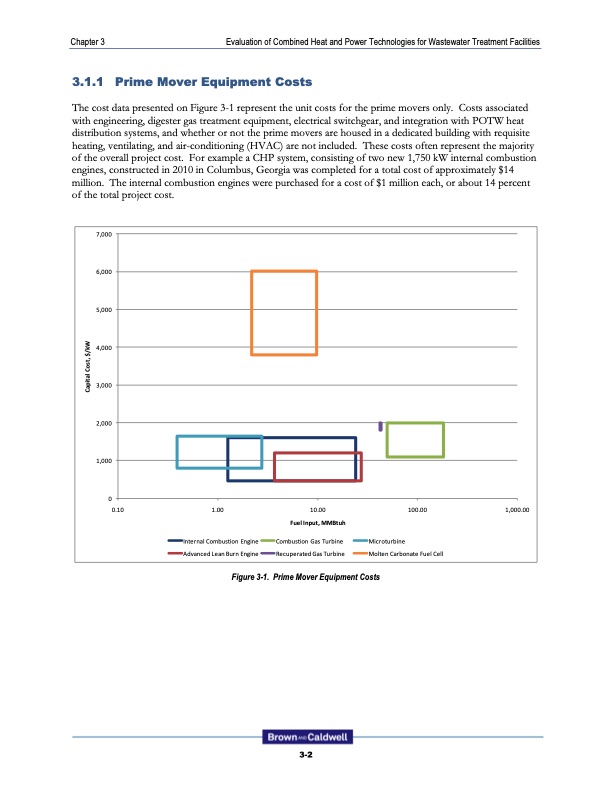

Chapter 3 Evaluation of Combined Heat and Power Technologies for Wastewater Treatment Facilities 3.1.1 Prime Mover Equipment Costs The cost data presented on Figure 3-1 represent the unit costs for the prime movers only. Costs associated with engineering, digester gas treatment equipment, electrical switchgear, and integration with POTW heat distribution systems, and whether or not the prime movers are housed in a dedicated building with requisite heating, ventilating, and air-conditioning (HVAC) are not included. These costs often represent the majority of the overall project cost. For example a CHP system, consisting of two new 1,750 kW internal combustion engines, constructed in 2010 in Columbus, Georgia was completed for a total cost of approximately $14 million. The internal combustion engines were purchased for a cost of $1 million each, or about 14 percent of the total project cost. 7,000 6,000 5,000 4,000 3,000 2,000 1,000 0 0.10 1.00 Internal Combustion Engine Advanced Lean Burn Engine 10.00 100.00 Fuel Input, MMBtuh Combustion Gas Turbine Microturbine Recuperated Gas Turbine Molten Carbonate Fuel Cell 1,000.00 Figure 3-1. Prime Mover Equipment Costs 3-2 Capital Cost, $/kWPDF Image | Combined Heat and Power Technologies for Wastewater Facilities
