Text from PDF Page: 014

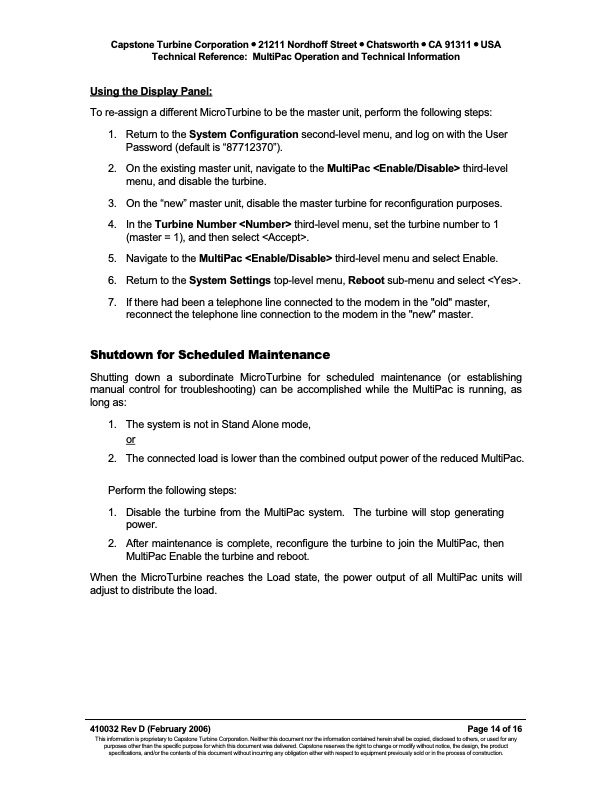

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: MultiPac Operation and Technical Information Using the Display Panel: To re-assign a different MicroTurbine to be the master unit, perform the following steps: 1. Return to the System Configuration second-level menu, and log on with the User Password (default is “87712370”). 2. On the existing master unit, navigate to the MultiPac third-level menu, and disable the turbine. 3. On the “new” master unit, disable the master turbine for reconfiguration purposes. 4. In the Turbine Number third-level menu, set the turbine number to 1 (master = 1), and then select . 5. Navigate to the MultiPac third-level menu and select Enable. 6. Return to the System Settings top-level menu, Reboot sub-menu and select . 7. If there had been a telephone line connected to the modem in the "old" master, reconnect the telephone line connection to the modem in the "new" master. Shutdown for Scheduled Maintenance Shutting down a subordinate MicroTurbine for scheduled maintenance (or establishing manual control for troubleshooting) can be accomplished while the MultiPac is running, as long as: 1. The system is not in Stand Alone mode, or 2. The connected load is lower than the combined output power of the reduced MultiPac. Perform the following steps: 1. Disable the turbine from the MultiPac system. The turbine will stop generating power. 2. After maintenance is complete, reconfigure the turbine to join the MultiPac, then MultiPac Enable the turbine and reboot. When the MicroTurbine reaches the Load state, the power output of all MultiPac units will adjust to distribute the load. 410032 Rev D (February 2006) Page 14 of 16 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.
