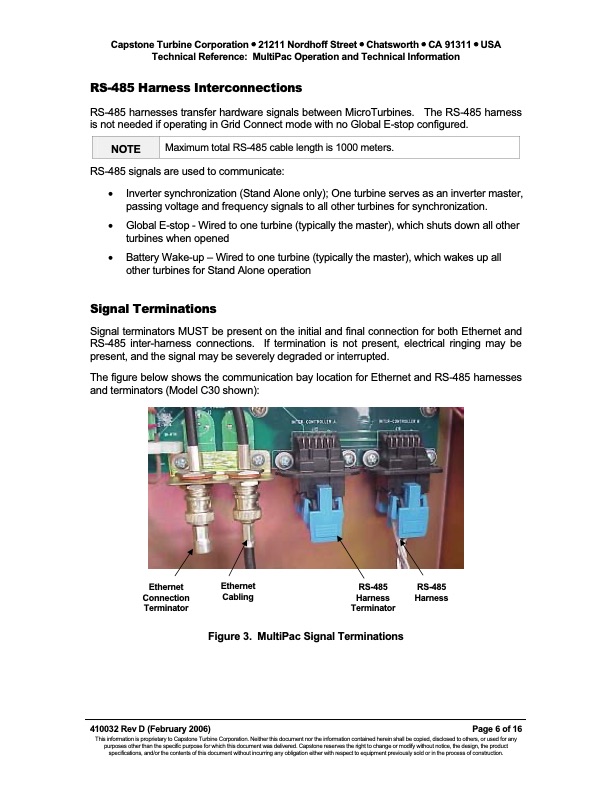

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: MultiPac Operation and Technical Information RS-485 Harness Interconnections RS-485 harnesses transfer hardware signals between MicroTurbines. The RS-485 harness is not needed if operating in Grid Connect mode with no Global E-stop configured. Maximum total RS-485 cable length is 1000 meters. RS-485 signals are used to communicate: • Inverter synchronization (Stand Alone only); One turbine serves as an inverter master, passing voltage and frequency signals to all other turbines for synchronization. • Global E-stop - Wired to one turbine (typically the master), which shuts down all other turbines when opened • Battery Wake-up – Wired to one turbine (typically the master), which wakes up all other turbines for Stand Alone operation Signal Terminations Signal terminators MUST be present on the initial and final connection for both Ethernet and RS-485 inter-harness connections. If termination is not present, electrical ringing may be present, and the signal may be severely degraded or interrupted. The figure below shows the communication bay location for Ethernet and RS-485 harnesses and terminators (Model C30 shown): NOTE Ethernet Connection Terminator Ethernet Cabling RS-485 Harness Terminator RS-485 Harness 410032 Rev D (February 2006) Page 6 of 16 Figure 3. MultiPac Signal Terminations This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference MultiPac Operation Technical Information
