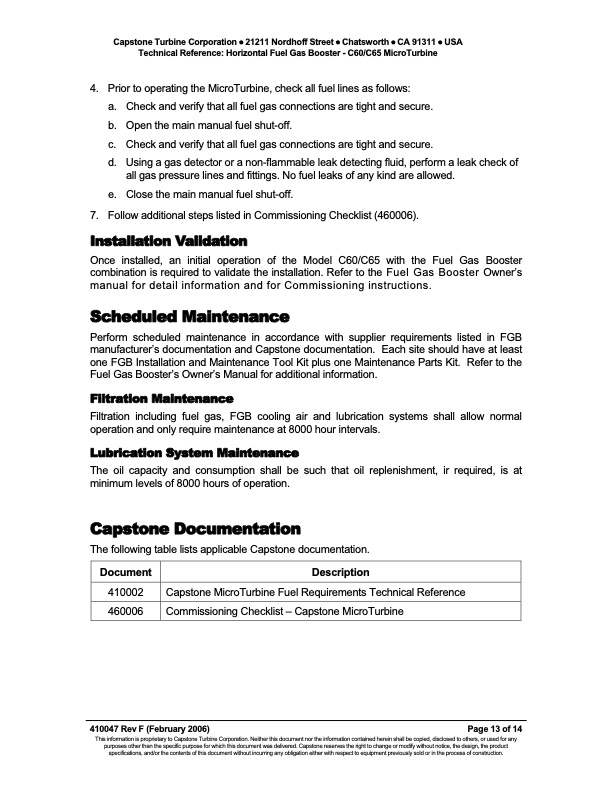

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Horizontal Fuel Gas Booster - C60/C65 MicroTurbine 4. Prior to operating the MicroTurbine, check all fuel lines as follows: a. Check and verify that all fuel gas connections are tight and secure. b. Open the main manual fuel shut-off. c. Check and verify that all fuel gas connections are tight and secure. d. Using a gas detector or a non-flammable leak detecting fluid, perform a leak check of all gas pressure lines and fittings. No fuel leaks of any kind are allowed. e. Close the main manual fuel shut-off. 7. Follow additional steps listed in Commissioning Checklist (460006). Installation Validation Once installed, an initial operation of the Model C60/C65 with the Fuel Gas Booster combination is required to validate the installation. Refer to the Fuel Gas Booster Owner’s manual for detail information and for Commissioning instructions. Scheduled Maintenance Perform scheduled maintenance in accordance with supplier requirements listed in FGB manufacturer’s documentation and Capstone documentation. Each site should have at least one FGB Installation and Maintenance Tool Kit plus one Maintenance Parts Kit. Refer to the Fuel Gas Booster’s Owner’s Manual for additional information. Filtration Maintenance Filtration including fuel gas, FGB cooling air and lubrication systems shall allow normal operation and only require maintenance at 8000 hour intervals. Lubrication System Maintenance The oil capacity and consumption shall be such that oil replenishment, ir required, is at minimum levels of 8000 hours of operation. Capstone Documentation The following table lists applicable Capstone documentation. Document 410002 460006 Description Capstone MicroTurbine Fuel Requirements Technical Reference Commissioning Checklist – Capstone MicroTurbine 410047 Rev F (February 2006) Page 13 of 14 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Horizontal Fuel Gas Booster - Model C60/C65 MicroTurbine
