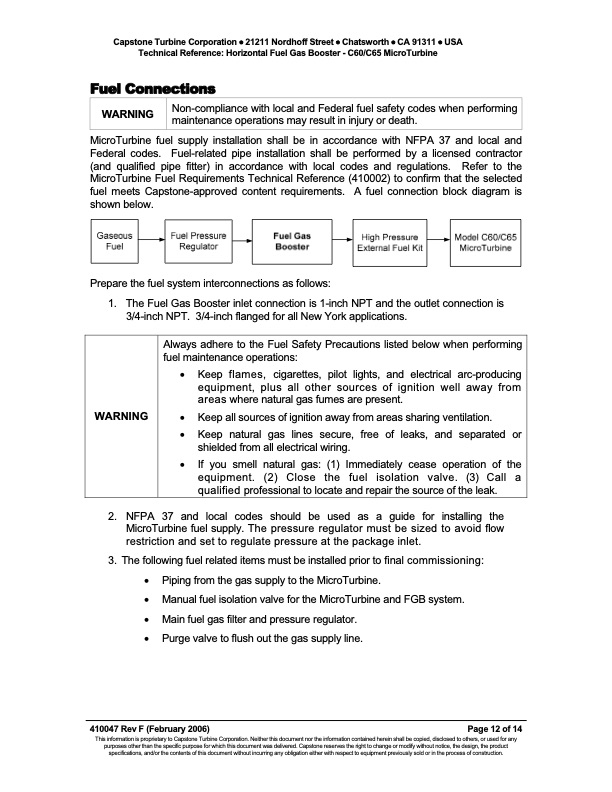

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Horizontal Fuel Gas Booster - C60/C65 MicroTurbine Fuel Connections WARNING Non-compliance with local and Federal fuel safety codes when performing maintenance operations may result in injury or death. MicroTurbine fuel supply installation shall be in accordance with NFPA 37 and local and Federal codes. Fuel-related pipe installation shall be performed by a licensed contractor (and qualified pipe fitter) in accordance with local codes and regulations. Refer to the MicroTurbine Fuel Requirements Technical Reference (410002) to confirm that the selected fuel meets Capstone-approved content requirements. A fuel connection block diagram is shown below. Prepare the fuel system interconnections as follows: 1. The Fuel Gas Booster inlet connection is 1-inch NPT and the outlet connection is 3/4-inch NPT. 3/4-inch flanged for all New York applications. WARNING Always adhere to the Fuel Safety Precautions listed below when performing fuel maintenance operations: • Keep flames, cigarettes, pilot lights, and electrical arc-producing equipment, plus all other sources of ignition well away from areas where natural gas fumes are present. • Keep all sources of ignition away from areas sharing ventilation. • Keep natural gas lines secure, free of leaks, and separated or shielded from all electrical wiring. • If you smell natural gas: (1) Immediately cease operation of the equipment. (2) Close the fuel isolation valve. (3) Call a qualified professional to locate and repair the source of the leak. 2. NFPA 37 and local codes should be used as a guide for installing the MicroTurbine fuel supply. The pressure regulator must be sized to avoid flow restriction and set to regulate pressure at the package inlet. 3. The following fuel related items must be installed prior to final commissioning: • Piping from the gas supply to the MicroTurbine. • Manual fuel isolation valve for the MicroTurbine and FGB system. • Main fuel gas filter and pressure regulator. • Purge valve to flush out the gas supply line. 410047 Rev F (February 2006) Page 12 of 14 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Horizontal Fuel Gas Booster - Model C60/C65 MicroTurbine
