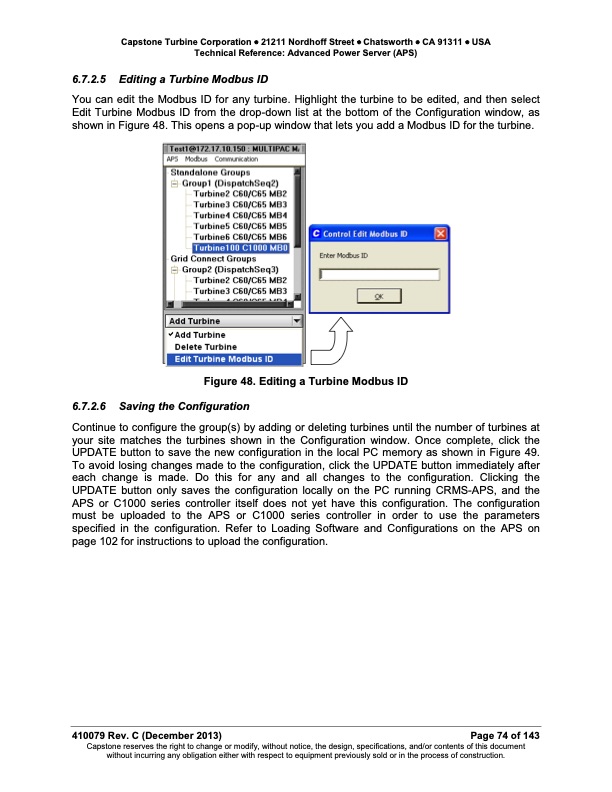

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Advanced Power Server (APS) 6.7.2.5 Editing a Turbine Modbus ID You can edit the Modbus ID for any turbine. Highlight the turbine to be edited, and then select Edit Turbine Modbus ID from the drop-down list at the bottom of the Configuration window, as shown in Figure 48. This opens a pop-up window that lets you add a Modbus ID for the turbine. Figure 48. Editing a Turbine Modbus ID 6.7.2.6 Saving the Configuration Continue to configure the group(s) by adding or deleting turbines until the number of turbines at your site matches the turbines shown in the Configuration window. Once complete, click the UPDATE button to save the new configuration in the local PC memory as shown in Figure 49. To avoid losing changes made to the configuration, click the UPDATE button immediately after each change is made. Do this for any and all changes to the configuration. Clicking the UPDATE button only saves the configuration locally on the PC running CRMS-APS, and the APS or C1000 series controller itself does not yet have this configuration. The configuration must be uploaded to the APS or C1000 series controller in order to use the parameters specified in the configuration. Refer to Loading Software and Configurations on the APS on page 102 for instructions to upload the configuration. 410079 Rev. C (December 2013) Page 74 of 143 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Advanced Power Server (APS)
