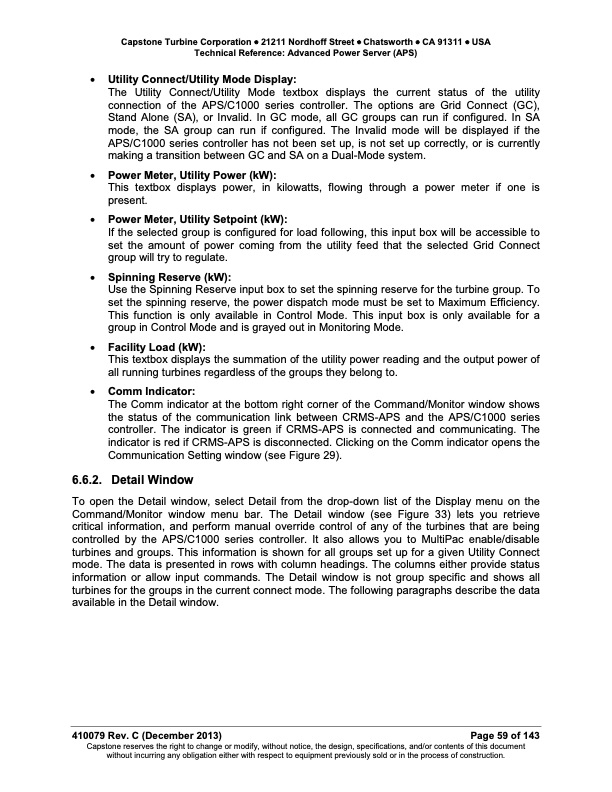

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Advanced Power Server (APS) • Utility Connect/Utility Mode Display: The Utility Connect/Utility Mode textbox displays the current status of the utility connection of the APS/C1000 series controller. The options are Grid Connect (GC), Stand Alone (SA), or Invalid. In GC mode, all GC groups can run if configured. In SA mode, the SA group can run if configured. The Invalid mode will be displayed if the APS/C1000 series controller has not been set up, is not set up correctly, or is currently making a transition between GC and SA on a Dual-Mode system. • Power Meter, Utility Power (kW): This textbox displays power, in kilowatts, flowing through a power meter if one is present. • Power Meter, Utility Setpoint (kW): If the selected group is configured for load following, this input box will be accessible to set the amount of power coming from the utility feed that the selected Grid Connect group will try to regulate. • Spinning Reserve (kW): Use the Spinning Reserve input box to set the spinning reserve for the turbine group. To set the spinning reserve, the power dispatch mode must be set to Maximum Efficiency. This function is only available in Control Mode. This input box is only available for a group in Control Mode and is grayed out in Monitoring Mode. • Facility Load (kW): This textbox displays the summation of the utility power reading and the output power of all running turbines regardless of the groups they belong to. • Comm Indicator: The Comm indicator at the bottom right corner of the Command/Monitor window shows the status of the communication link between CRMS-APS and the APS/C1000 series controller. The indicator is green if CRMS-APS is connected and communicating. The indicator is red if CRMS-APS is disconnected. Clicking on the Comm indicator opens the Communication Setting window (see Figure 29). 6.6.2. Detail Window To open the Detail window, select Detail from the drop-down list of the Display menu on the Command/Monitor window menu bar. The Detail window (see Figure 33) lets you retrieve critical information, and perform manual override control of any of the turbines that are being controlled by the APS/C1000 series controller. It also allows you to MultiPac enable/disable turbines and groups. This information is shown for all groups set up for a given Utility Connect mode. The data is presented in rows with column headings. The columns either provide status information or allow input commands. The Detail window is not group specific and shows all turbines for the groups in the current connect mode. The following paragraphs describe the data available in the Detail window. 410079 Rev. C (December 2013) Page 59 of 143 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Advanced Power Server (APS)
