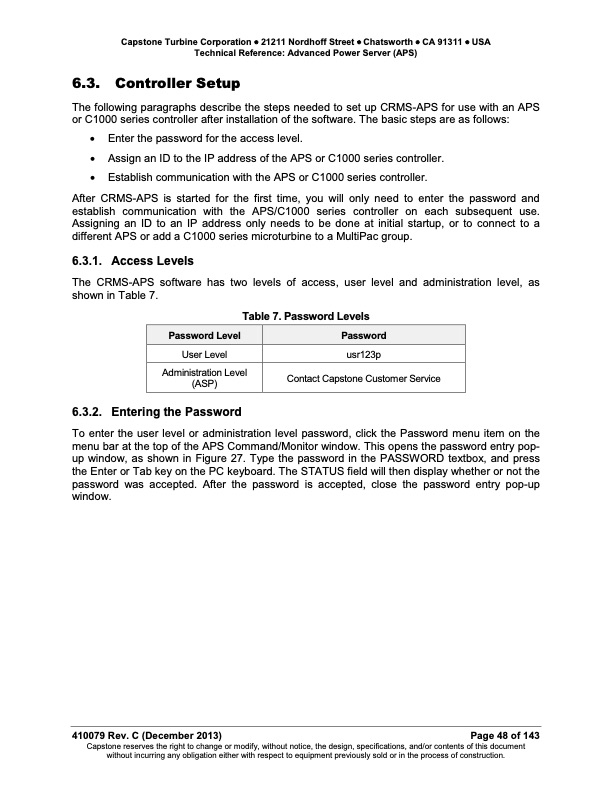

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Advanced Power Server (APS) 6.3. Controller Setup The following paragraphs describe the steps needed to set up CRMS-APS for use with an APS or C1000 series controller after installation of the software. The basic steps are as follows: • Enter the password for the access level. • Assign an ID to the IP address of the APS or C1000 series controller. • Establish communication with the APS or C1000 series controller. After CRMS-APS is started for the first time, you will only need to enter the password and establish communication with the APS/C1000 series controller on each subsequent use. Assigning an ID to an IP address only needs to be done at initial startup, or to connect to a different APS or add a C1000 series microturbine to a MultiPac group. 6.3.1. Access Levels The CRMS-APS software has two levels of access, user level and administration level, as shown in Table 7. Table 7. Password Levels User Level usr123p Password Level Password Administration Level (ASP) 6.3.2. Entering the Password Contact Capstone Customer Service To enter the user level or administration level password, click the Password menu item on the menu bar at the top of the APS Command/Monitor window. This opens the password entry pop- up window, as shown in Figure 27. Type the password in the PASSWORD textbox, and press the Enter or Tab key on the PC keyboard. The STATUS field will then display whether or not the password was accepted. After the password is accepted, close the password entry pop-up window. 410079 Rev. C (December 2013) Page 48 of 143 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Advanced Power Server (APS)
