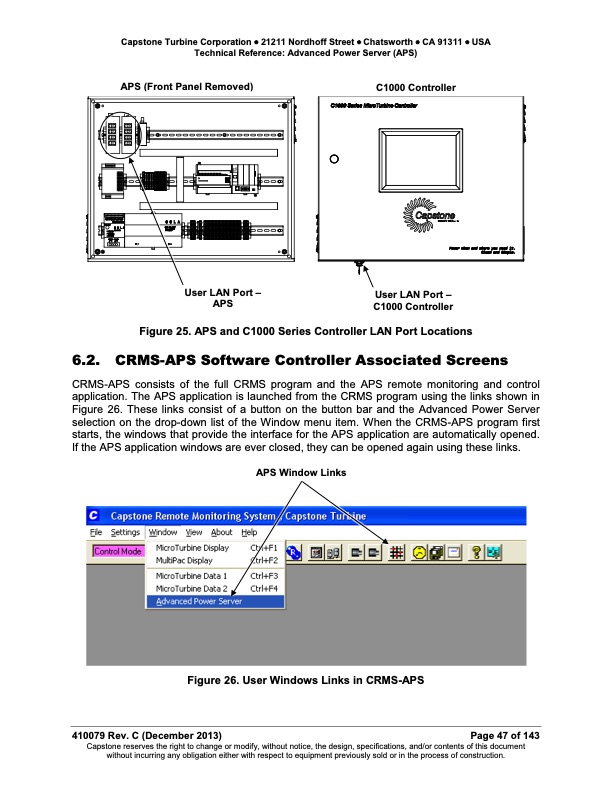

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Advanced Power Server (APS) APS (Front Panel Removed) C1000 Controller User LAN Port – APS User LAN Port – C1000 Controller Figure 25. APS and C1000 Series Controller LAN Port Locations 6.2. CRMS-APS Software Controller Associated Screens CRMS-APS consists of the full CRMS program and the APS remote monitoring and control application. The APS application is launched from the CRMS program using the links shown in Figure 26. These links consist of a button on the button bar and the Advanced Power Server selection on the drop-down list of the Window menu item. When the CRMS-APS program first starts, the windows that provide the interface for the APS application are automatically opened. If the APS application windows are ever closed, they can be opened again using these links. APS Window Links Figure 26. User Windows Links in CRMS-APS 410079 Rev. C (December 2013) Page 47 of 143 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Advanced Power Server (APS)
