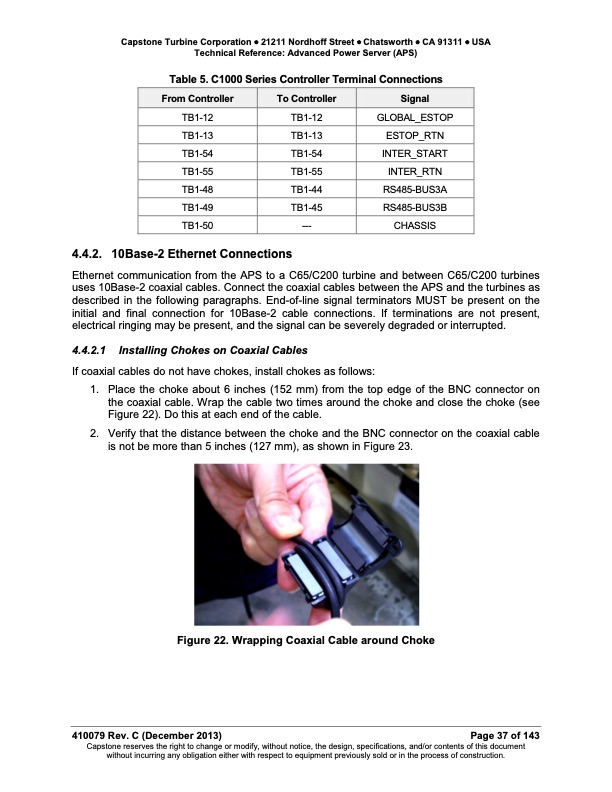

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Advanced Power Server (APS) Table 5. C1000 Series Controller Terminal Connections From Controller To Controller Signal TB1-12 TB1-12 TB1-13 TB1-13 TB1-54 TB1-54 TB1-55 TB1-55 TB1-48 TB1-44 TB1-49 TB1-45 GLOBAL_ESTOP ESTOP_RTN INTER_START INTER_RTN RS485-BUS3A RS485-BUS3B CHASSIS TB1-50 4.4.2. 10Base-2 Ethernet Connections --- Ethernet communication from the APS to a C65/C200 turbine and between C65/C200 turbines uses 10Base-2 coaxial cables. Connect the coaxial cables between the APS and the turbines as described in the following paragraphs. End-of-line signal terminators MUST be present on the initial and final connection for 10Base-2 cable connections. If terminations are not present, electrical ringing may be present, and the signal can be severely degraded or interrupted. 4.4.2.1 Installing Chokes on Coaxial Cables If coaxial cables do not have chokes, install chokes as follows: 1. Place the choke about 6 inches (152 mm) from the top edge of the BNC connector on the coaxial cable. Wrap the cable two times around the choke and close the choke (see Figure 22). Do this at each end of the cable. 2. Verify that the distance between the choke and the BNC connector on the coaxial cable is not be more than 5 inches (127 mm), as shown in Figure 23. Figure 22. Wrapping Coaxial Cable around Choke 410079 Rev. C (December 2013) Page 37 of 143 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Advanced Power Server (APS)
