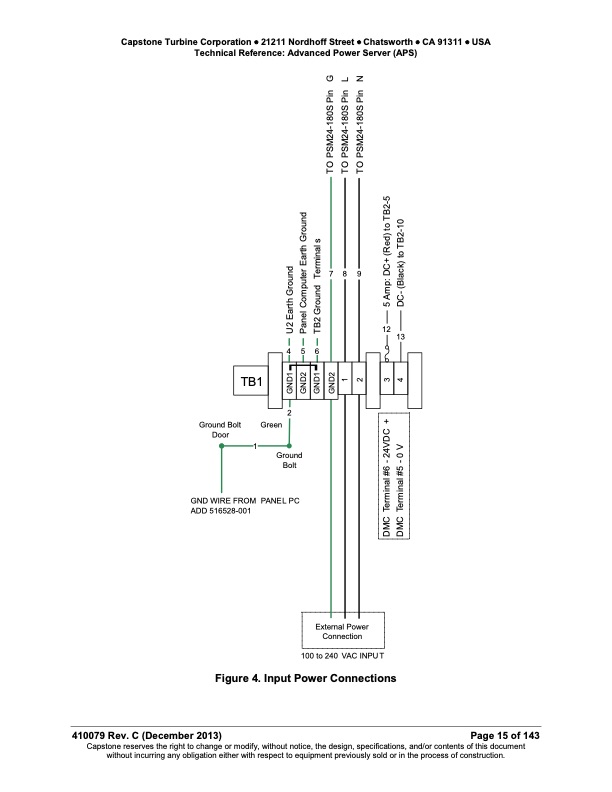

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Advanced Power Server (APS) 789 12 13 TB1 Ground Bolt Door 456 2 1 Ground Bolt Green GND WIRE FROM PANEL PC ADD 516528-001 Figure 4. Input Power Connections 410079 Rev. C (December 2013) Page 15 of 143 External Power Connection 100 to 240 VAC INPU T Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. DMC Terminal #6 - 24VDC + 3 DMC Terminal #5 - 0 V 4 5 Amp: DC+ (Red) to TB2-5 DC- (Black) to TB2-10 GND1 GND2 GND1 GND2 U2 Earth Ground Panel Computer Earth Ground TB2 Ground Terminal s 1 2 TO PSM24-180S Pin G TO PSM24-180S Pin L TO PSM24-180S Pin NPDF Image | Technical Reference Advanced Power Server (APS)
