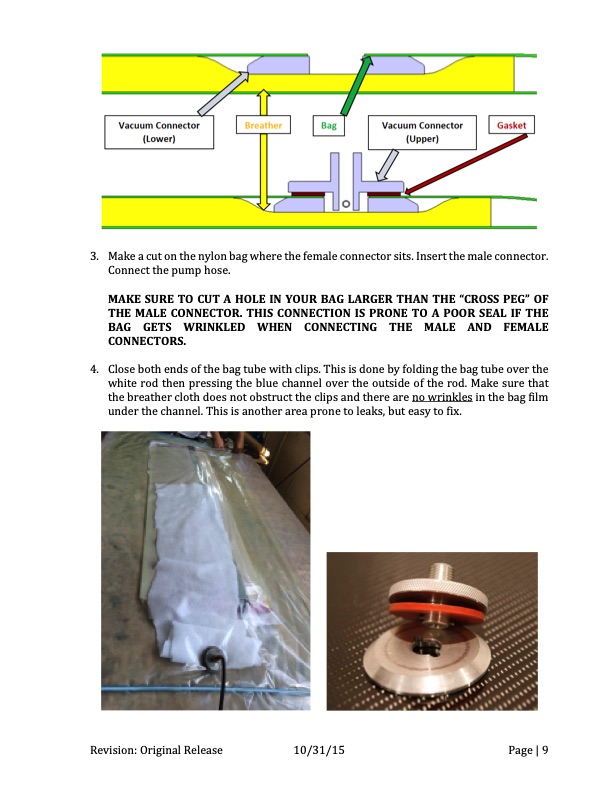

3. Make a cut on the nylon bag where the female connector sits. Insert the male connector. Connect the pump hose. MAKE SURE TO CUT A HOLE IN YOUR BAG LARGER THAN THE “CROSS PEG” OF THE MALE CONNECTOR. THIS CONNECTION IS PRONE TO A POOR SEAL IF THE BAG GETS WRINKLED WHEN CONNECTING THE MALE AND FEMALE CONNECTORS. 4. Close both ends of the bag tube with clips. This is done by folding the bag tube over the white rod then pressing the blue channel over the outside of the rod. Make sure that the breather cloth does not obstruct the clips and there are no wrinkles in the bag film under the channel. This is another area prone to leaks, but easy to fix. Revision: Original Release 10/31/15 Page | 9PDF Image | Vacuum Bagging Wings Instruction Manual Purdue Univ
