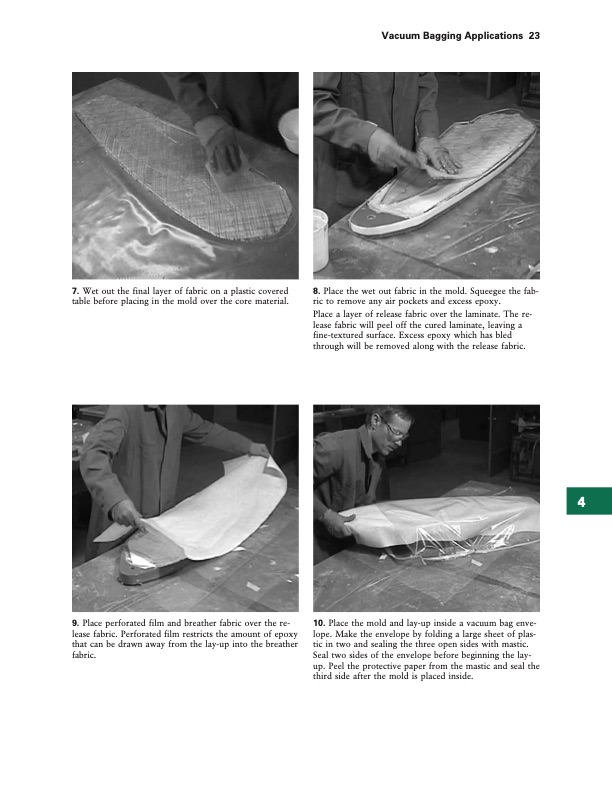

7. Wet out the final layer of fabric on a plastic covered table before placing in the mold over the core material. 9. Place perforated film and breather fabric over the re- lease fabric. Perforated film restricts the amount of epoxy that can be drawn away from the lay-up into the breather fabric. 8. Place the wet out fabric in the mold. Squeegee the fab- ric to remove any air pockets and excess epoxy. Place a layer of release fabric over the laminate. The re- lease fabric will peel off the cured laminate, leaving a fine-textured surface. Excess epoxy which has bled through will be removed along with the release fabric. 10. Place the mold and lay-up inside a vacuum bag enve- lope. Make the envelope by folding a large sheet of plas- tic in two and sealing the three open sides with mastic. Seal two sides of the envelope before beginning the lay- up. Peel the protective paper from the mastic and seal the third side after the mold is placed inside. Vacuum Bagging Applications 23 4PDF Image | Vacuum Bagging Techniques 002150
