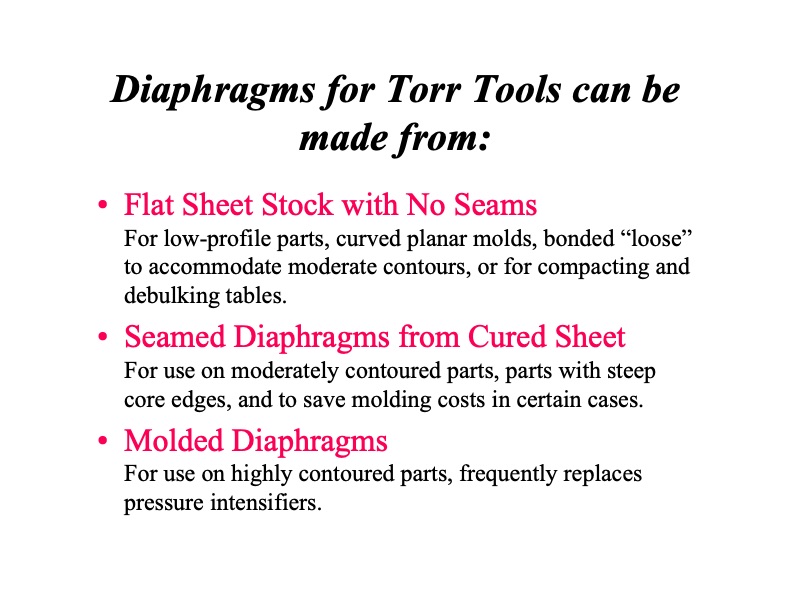

Diaphragms for Torr Tools can be made from: • Flat Sheet Stock with No Seams For low-profile parts, curved planar molds, bonded “loose” to accommodate moderate contours, or for compacting and debulking tables. • Seamed Diaphragms from Cured Sheet For use on moderately contoured parts, parts with steep core edges, and to save molding costs in certain cases. • Molded Diaphragms For use on highly contoured parts, frequently replaces pressure intensifiers.PDF Image | Vacuum Bagging Systems and Accessories
