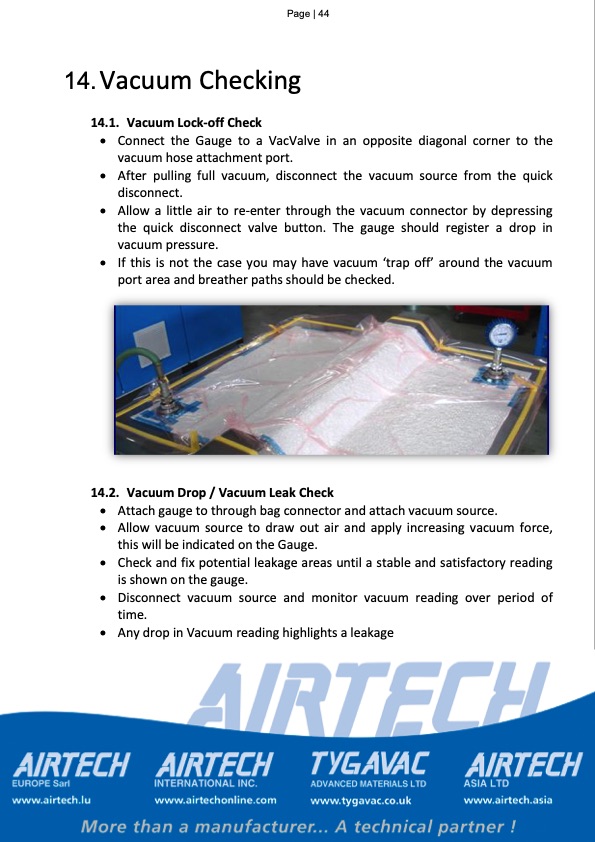

14.Vacuum Checking 14.1. Vacuum Lock-off Check Page | 44 Vacuum Bagging for Resin Infusion • Connect the Gauge to a VacValve in an opposite diagonal corner to the vacuum hose attachment port. • After pulling full vacuum, disconnect the vacuum source from the quick disconnect. • Allow a little air to re-enter through the vacuum connector by depressing the quick disconnect valve button. The gauge should register a drop in vacuum pressure. • If this is not the case you may have vacuum ‘trap off’ around the vacuum port area and breather paths should be checked. 14.2. VacuumDrop/VacuumLeakCheck • Attach gauge to through bag connector and attach vacuum source. • Allow vacuum source to draw out air and apply increasing vacuum force, this will be indicated on the Gauge. • Check and fix potential leakage areas until a stable and satisfactory reading is shown on the gauge. • Disconnect vacuum source and monitor vacuum reading over period of time. • Any drop in Vacuum reading highlights a leakagePDF Image | Vacuum Bagging for Resin Infusion
