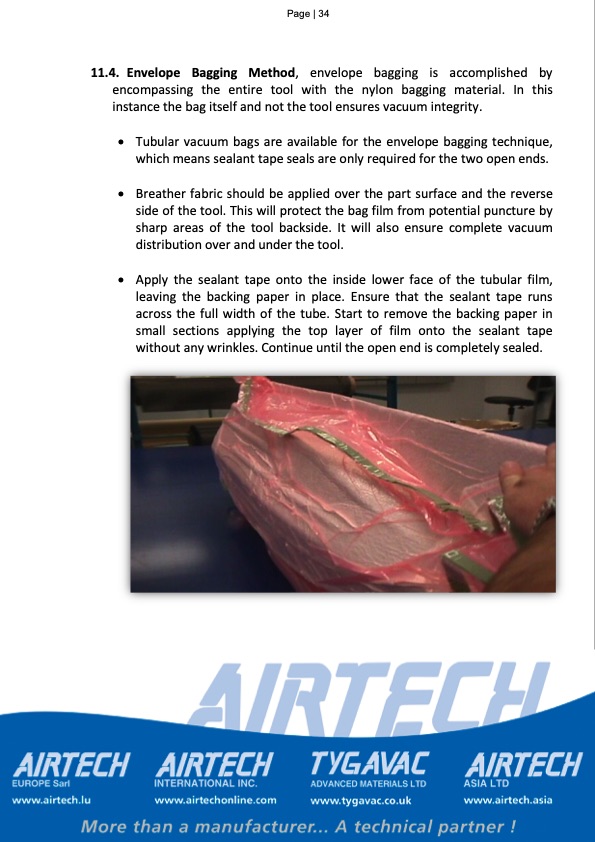

Page | 34 Vacuum Bagging for Resin Infusion 11.4. Envelope Bagging Method, envelope bagging is accomplished by encompassing the entire tool with the nylon bagging material. In this instance the bag itself and not the tool ensures vacuum integrity. • Tubular vacuum bags are available for the envelope bagging technique, which means sealant tape seals are only required for the two open ends. • Breather fabric should be applied over the part surface and the reverse side of the tool. This will protect the bag film from potential puncture by sharp areas of the tool backside. It will also ensure complete vacuum distribution over and under the tool. • Apply the sealant tape onto the inside lower face of the tubular film, leaving the backing paper in place. Ensure that the sealant tape runs across the full width of the tube. Start to remove the backing paper in small sections applying the top layer of film onto the sealant tape without any wrinkles. Continue until the open end is completely sealed.PDF Image | Vacuum Bagging for Resin Infusion
