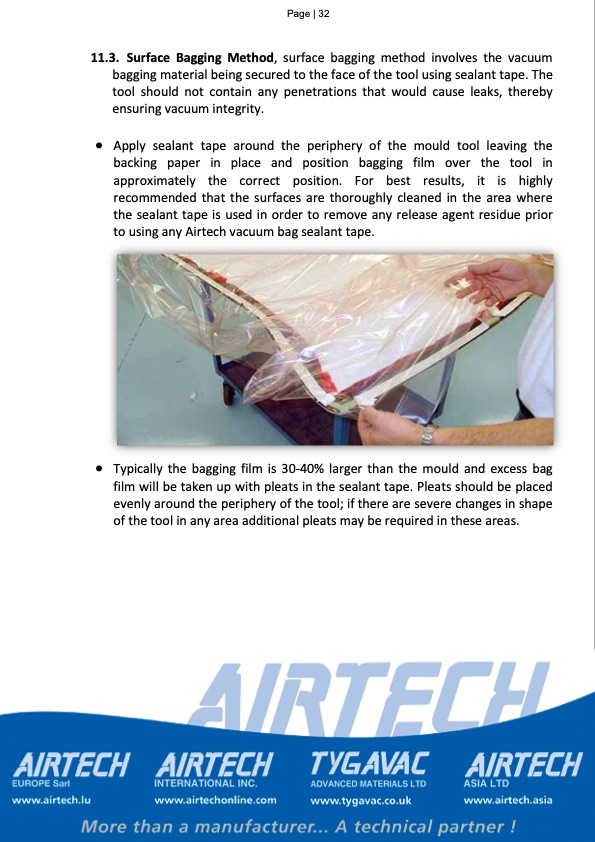

Page | 32 Vacuum Bagging for Resin Infusion 11.3. Surface Bagging Method, surface bagging method involves the vacuum bagging material being secured to the face of the tool using sealant tape. The tool should not contain any penetrations that would cause leaks, thereby ensuring vacuum integrity. • Apply sealant tape around the periphery of the mould tool leaving the backing paper in place and position bagging film over the tool in approximately the correct position. For best results, it is highly recommended that the surfaces are thoroughly cleaned in the area where the sealant tape is used in order to remove any release agent residue prior to using any Airtech vacuum bag sealant tape. • Typically the bagging film is 30-40% larger than the mould and excess bag film will be taken up with pleats in the sealant tape. Pleats should be placed evenly around the periphery of the tool; if there are severe changes in shape of the tool in any area additional pleats may be required in these areas.PDF Image | Vacuum Bagging for Resin Infusion
